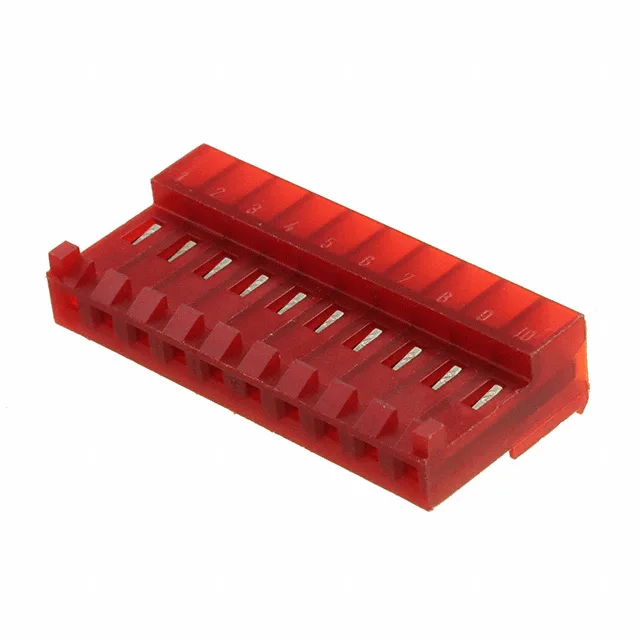

4-644662-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 4-644662-0 Receptacle, 10 Pos, 0.156" Pitch, IDC

MPN4-644662-0
Active

TE Connectivity MTA-156 receptacle, 4-644662-0, 10 positions, 0.156" (3.96 mm) pitch, 1 row, IDC termination, 22 AWG, gold contacts, locking ramp, closed end, red.

$4.3400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

4-644662-0 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End, Polarizing Key
Contact finishGold
Rows1
Positions10
Contact finish thickness30.0µin (0.76µm)

Product details

The closed-end housing prevents the cable from being pushed through, and the polarizing key ensures the connector can only be mated one way — a practical guard against miswiring on the line.

Wire Sizing and Termination

This IDC receptacle is factory-set for 22 AWG wire — no stripping, no crimping. If your harness calls for a different gauge, this specific part won't work; you'd need the MTA-156 variant for that wire size.

Mates with any standard MTA-156 header (through-hole or vertical) that shares the same 0.156" pitch and 10-position count. No secondary latch or screw lock — the ramp is the primary retention.

Frequently asked questions

What is the pitch of 4-644662-0?

The pitch is 0.156" (3.96 mm), the standard spacing for the MTA-156 series.

What wire gauge does 4-644662-0 support?

It is designed for 22 AWG discrete or ribbon cable, terminated via IDC.

Is 4-644662-0 compatible with standard MTA-156 headers?

Yes, it mates with any 10-position MTA-156 header of the same pitch (0.156") and uses a locking ramp for retention.
