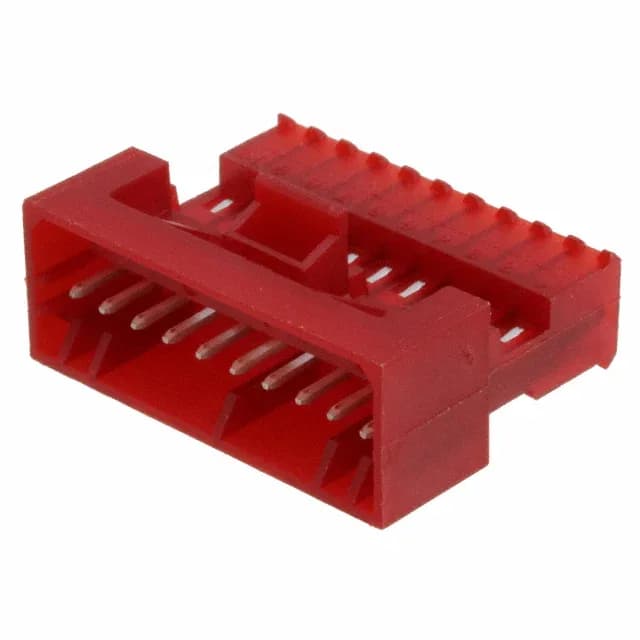

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint — one family, fewer SKUs across the harness build. The red housing is a color code for 22 AWG in the MTA system, so a quick visual check confirms the wire gauge before assembly.
Termination and Wiring — IDC with 22 AWG
The IDC termination accepts 22 AWG discrete wire or ribbon cable — the insulation is displaced by the tin-plated slot, so no stripping or crimping is needed. The 80.0 µ" (2.03 µm) tin contact finish is heavy enough to handle the cold-flow displacement without exposing the base metal, but tin limits mating cycles compared to gold. The closed-end feature means the plug body has a solid wall at the back — no open slot for the cable to push through. This keeps the wire ends contained and prevents accidental pull-out from the back side of the connector.
