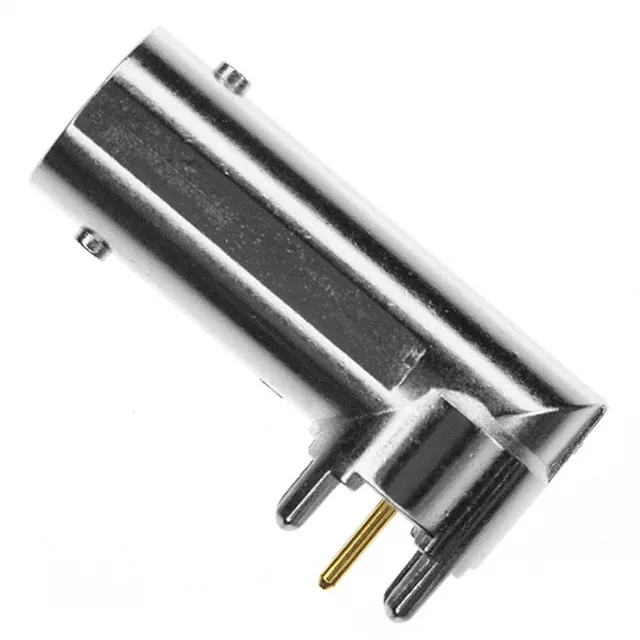

TE Connectivity BNC jack, female socket, 75 Ohm, right-angle through-hole, bayonet lock, 500 V, 2 GHz, gold center contact, nickel body, 1 port.
| Parameter | Value |
|---|---|
| Mounting type | Through Hole, Right Angle |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 2 GHz |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Impedance | 75 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 413558-1: The 75 Ohm impedance and 2 GHz maximum frequency confirm this is a video-frequency connector, not a 50 Ohm RF/data part. The nickel-plated zinc body provides RF shielding and corrosion resistance.
The connector mounts through-hole, right-angle to the PCB.
There is no official replacement or cross-reference from the manufacturer.
It is a through-hole, right-angle mount connector.
The dielectric is polymethylpentene (PMP).
