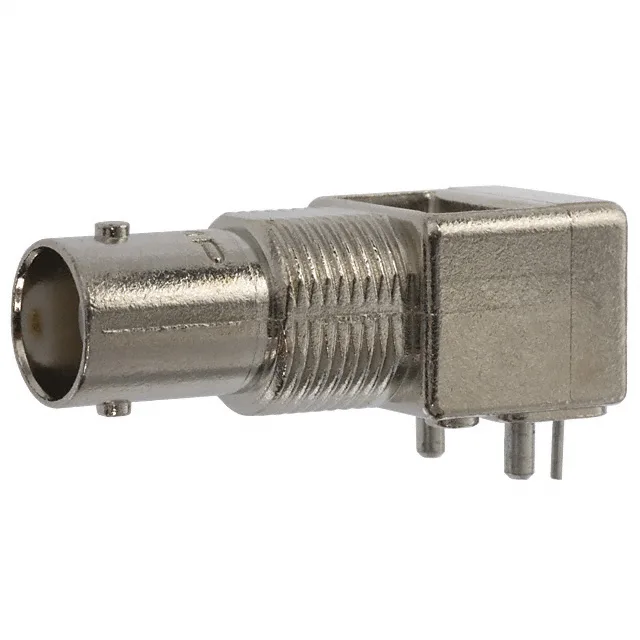

BNC Jack for RF Signal Paths
Panel Fit and Board Layout
The zinc die-cast body with nickel finish gives a solid ground reference; the shield termination is solder, so you get a continuous ground path from the shell to the board plane.
Dielectric and Temperature Range
PMP has low dielectric loss at RF frequencies, so the 4 GHz ceiling is usable — the signal doesn't roll off early from dielectric heating. The 500 V rating is a DC/AC peak figure; in practice, the voltage standoff is limited by the air gap at the mating interface, not the PMP itself.
