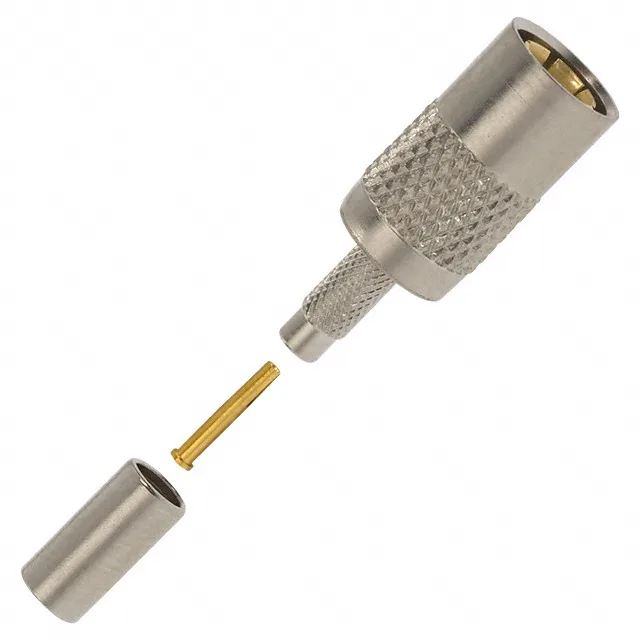

413985-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 413985-4 SMB Plug, 50 Ohm, 4 GHz

MPN413985-4
Active

TE Connectivity SMB plug, female socket, 50 Ohms, 4 GHz, crimp/solder termination, for RG-174/188/316 cable, 500 mating cycles, -65°C to 165°C.

$13.0900Ref. price · indicative, final on quote
StockIn Stock (33)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

413985-4 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max4 GHz
Cable groupRG-174, 188, 316 (Double Braid)
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

Cable Fit and Termination — RG-174, 188, 316 Double Braid

The 413985-4: This plug is designed for RG-174, RG-188, and RG-316 double-braid cable groups. The contact terminates by crimp or solder; the shield crimps over the ferrule. The PTFE dielectric handles the temperature range and keeps impedance stable through the termination. If you're working with RG-316, this plug is a direct fit.

Cross-Shop: 415218-1 as a Functional Alternative

If 413985-4 is on allocation, the 415218-1 is a direct functional peer — same SMB plug, female socket, 50 Ohm, bulk package, active lifecycle. The key difference is the cable group: 415218-1 may target a different cable type. Confirm your cable fit before swapping.

Frequently asked questions

What cable groups are compatible with 413985-4?

The 413985-4 is designed for RG-174, RG-188, and RG-316 double-braid cable groups.

Does 413985-4 work with RG-316 cable?

Yes, RG-316 double-braid is one of the specified cable groups for this plug. The kit includes the ferrule and contact needed for termination.

What is the impedance of TE Connectivity 413985-4?

The 413985-4 is rated at 50 Ohms impedance, the standard for RF signal paths in telecom, test equipment, and instrumentation.
