TE Connectivity AMP Connectors 41472 — Ring Terminals

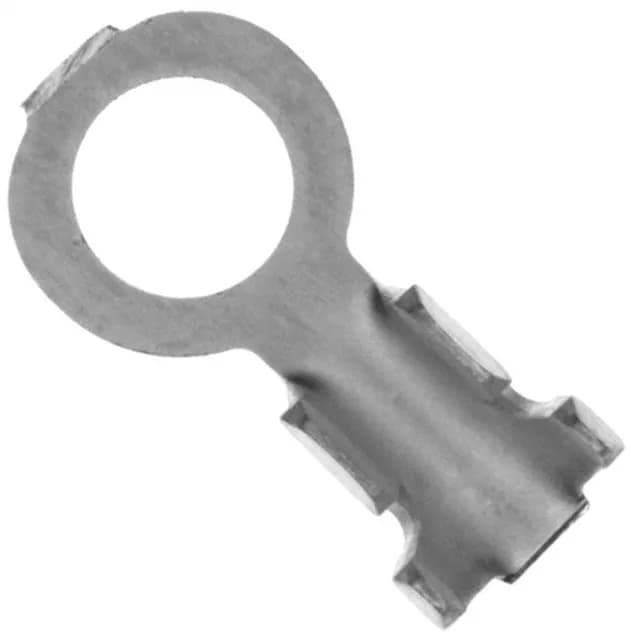

TE 41472 Ring Terminal, 16-20 AWG, Non-Insulated, Tin

MPN41472
Active

TE Connectivity AMP Connectors ring terminal, order code 41472, 16-20 AWG, non-insulated, oval tongue, tin-plated brass, 0.025" (0.64mm) thickness, 0.467" (11.86mm) overall length, crimp termination, free hanging, Tape & Reel.

$0.1800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 41472 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

41472 specifications
ParameterValue
MountingFree Hanging (In-Line)
Terminal typeOval
Wire gauge16-20 AWG
Contact materialBrass
Width - outer edges0.246\" (6.25mm)
PackageTape & Reel (TR) Cut Tape (CT)
Thickness0.025\" (0.64mm)
InsulationNon-Insulated
TerminationCrimp
Contact finishTin
Length - overall0.467\" (11.86mm)
Insulation diameter0.100\" ~ 0.135\" (2.54mm ~ 3.43mm)

Product details

Oval-tongue ring terminal for 16-20 AWG

The 41472: The brass contact is tin-plated, the terminal measures 0.467" (11.86mm) overall length with a 0.246" (6.25mm) outer width, and the material thickness is 0.025" (0.64mm).

Functional peer — 160252-2

The 160252-2 is a close functional peer: it accepts 15-20 AWG, has a 0.244" (6.20mm) outer width and 0.488" (12.40mm) length, with 0.024" (0.61mm) thickness — the 41472's 0.025" (0.64mm) thickness and 0.246" (6.25mm) width are slightly larger, but the insulation diameter range (0.100" to 0.135") and non-insulated construction are shared.

Frequently asked questions

What compliance documentation is available for 41472?

The 41472 is ROHS3 Compliant per the listed RoHS status.

Will 41472 drop into a panel specified around 160252-2?

The 41472 has a slightly larger outer width (0.246" vs 0.244") and greater thickness (0.025" vs 0.024") than the 160252-2. The insulation diameter range overlaps, but the dimensional differences may affect fit in tight panels — verify the terminal's outer width and thickness against the panel clearance.
