Tab dimensions and termination
The 41480: Termination is by screw, rivet, or stud, with a 90° angled tab orientation for board or chassis mounting. The contact is tin-plated brass, non-insulated, with two tabs on the terminal.

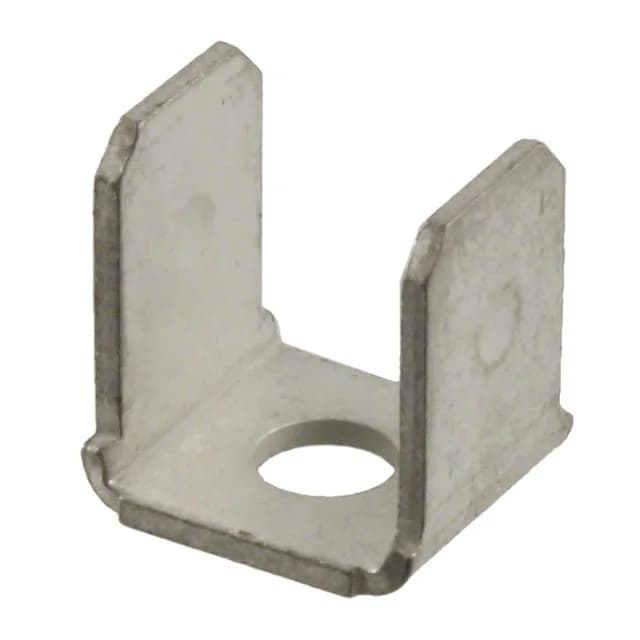

TE 41480 Faston Quick-Disconnect Tab, 0.250"
MPN41480
Active
TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 41480, male tab, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated brass, 90° angled, screw/rivet/stud termination, bulk.
$0.2500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Board, Chassis |
| Terminal type | Angled - 90° |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Features | 2 Tabs |
| Insulation | Non-Insulated |
| Termination | Screw, Rivet, Stud |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
