TE Connectivity AMP Connectors 41580 — Ring Terminals

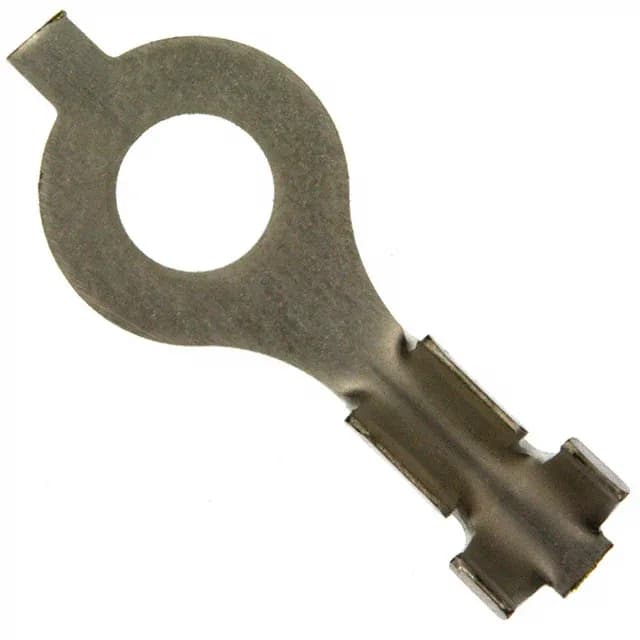

41580 Ring Terminal, 20-24 AWG, #6 Stud, Tin, Non-Insulated

MPN41580
Active

Ring terminal, 41580, 20-24 AWG, #6 stud, tin-plated brass, non-insulated, 0.020" thick, 0.630" overall length, free hanging crimp, Tape & Reel packaging.

$0.1600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 41580 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

41580 specifications
ParameterValue
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge20-24 AWG
Contact materialBrass
Width - outer edges0.290\" (7.37mm)
PackageTape & Reel (TR) Cut Tape (CT)
Thickness0.020\" (0.51mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.630\" (16.00mm)
Insulation diameter0.080\" ~ 0.100\" (2.03mm ~ 2.54mm)

Product details

Ring terminal for 20-24 AWG, #6 stud

The 41580 is a non-insulated ring terminal accepting 20-24 AWG wire, crimp-terminated for a #6 stud. Tin-plated brass construction, 0.020" thick, 0.630" overall length, with an insulation diameter range of 0.080" to 0.100".

Sibling terminals in the same stud size

The 41580 (20-24 AWG) fits a #6 stud with a 0.290" outer width. For heavier 14-18 AWG, the 140546 uses a 0.342" width and 0.024" thickness. For 18-22 AWG, the 170225-1 offers a serrated termination with a 0.295" width. The 160252-2 covers 15-20 AWG with a 0.244" width and 0.024" thickness.
