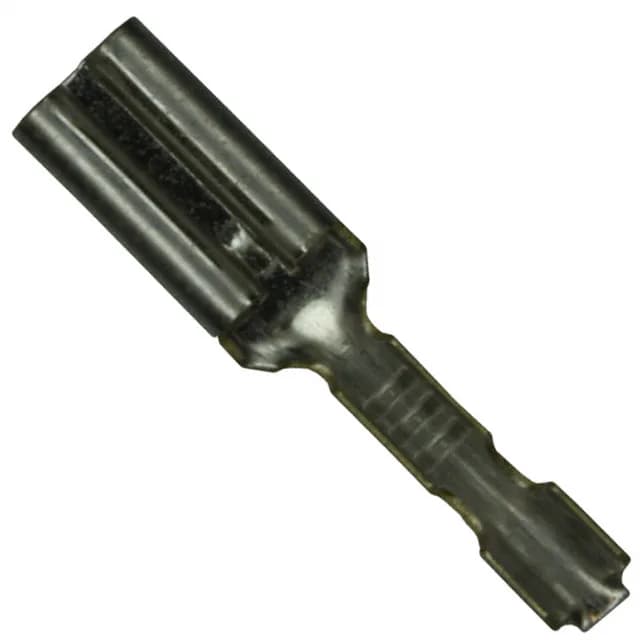

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 42067-1, female, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, 22-24 AWG, tin-plated brass, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 22-24 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.635\" (16.13mm) |
| Insulation diameter | 0.040\" ~ 0.060\" (1.02mm ~ 1.52mm) |
The 42067-1 is a standard female quick-disconnect terminal in the TE Faston series, accepting 0.110" (2.79mm) tab width and 0.020" (0.51mm) tab thickness. Crimp termination for 22-24 AWG wire with an insulation diameter range of 0.040" to 0.060" (1.02mm to 1.52mm). Tin-plated brass contact; free-hanging, non-insulated design.
The terminal accepts 22-24 AWG wire with an insulation diameter range of 0.040" to 0.060" (1.02mm to 1.52mm).
