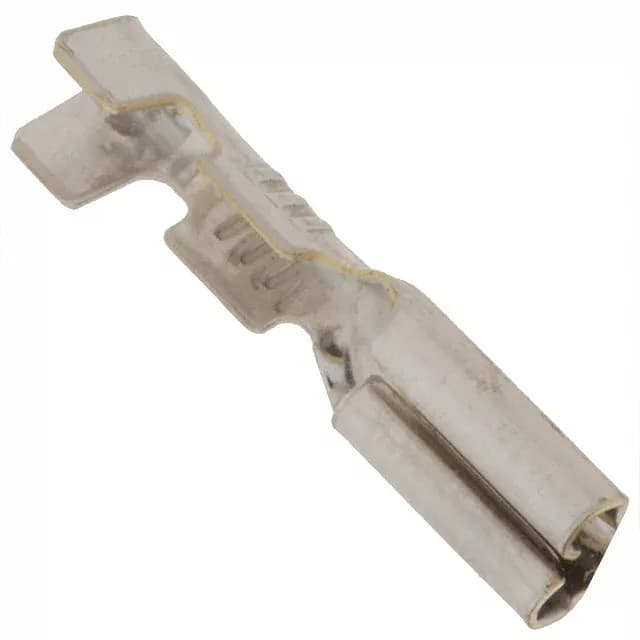

TE Connectivity Faston 42068-1 QC Receptacle, 0.110" Tab, 18-22 AWG
MPN42068-1
Active
TE Connectivity Faston receptacle, order code 42068-1, female, 0.110" (2.79mm) width, 0.020" (0.51mm) tab thickness, 18-22 AWG, tin-plated brass, crimp termination, non-insulated, free hanging.
$0.1200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.635\" (16.13mm) |
| Insulation diameter | 0.060\" ~ 0.100\" (1.52mm ~ 2.54mm) |
