TE Connectivity AMP Connectors 42098-2 — Quick-Disconnect Terminals

TE 42098-2 Fastin-Faston QC Tab, Male, 0.250" (6.35mm)

MPN42098-2
Active

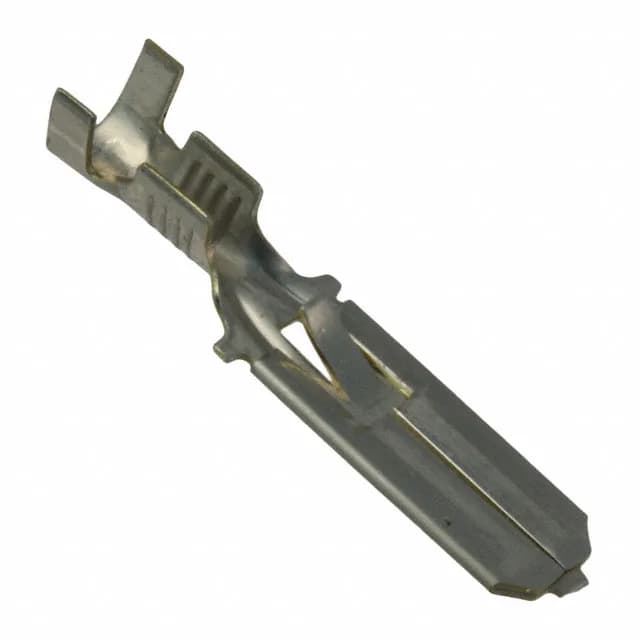

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 42098-2, male tab, 0.250" (6.35mm) tab width, 14-18 AWG, tin-plated brass, non-insulated, crimp termination, free hanging.

$0.2200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 42098-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

42098-2 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderMale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.620\" (15.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall1.107\" (28.12mm)

Product details

Male tab for 14-18 AWG

The 42098-2 is a non-insulated male quick-disconnect tab from TE's Fastin-Faston series, accepting 14-18 AWG wire with a crimp termination. The 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness mate with standard Fastin-Faston female receptacles; the tin-plated brass contact carries the current path without additional plating steps.

Peer comparison: 927899-2

The 927899-2 shares the same 0.250" (6.35mm) tab width, male gender, non-insulated body, and crimp termination, but accepts 18-22 AWG wire — a narrower gauge range than the 42098-2's 14-18 AWG.

Frequently asked questions

What compliance documentation does TE provide for 42098-2?

The part is ROHS3 Compliant per the manufacturer listing.
