TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 42100-1, female, 0.250" (6.35mm) tab width, 14-18 AWG, non-insulated, brass contact, crimp termination, free hanging.

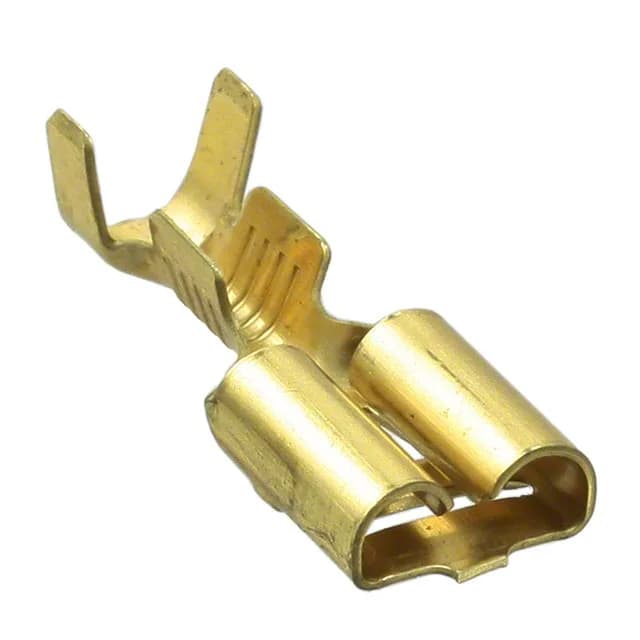

TE 42100-1 Fastin-Faston Quick-Disconnect Terminal
MPN42100-1
Active
TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 42100-1, female, 0.250" (6.35mm) tab width, 14-18 AWG, non-insulated, brass contact, crimp termination, free hanging.
$0.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.290\" (7.37mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.750\" (19.05mm) |
| Insulation diameter | 0.100\" ~ 0.170\" (2.54mm ~ 4.32mm) |
Product details
Frequently asked questions
What compliance documentation is available for the 42100-1?
The terminal is ROHS3 compliant. No UL or IEC certification is listed in the available data.
