TE Connectivity AMP Connectors 42281-1 — Quick-Disconnect Terminals

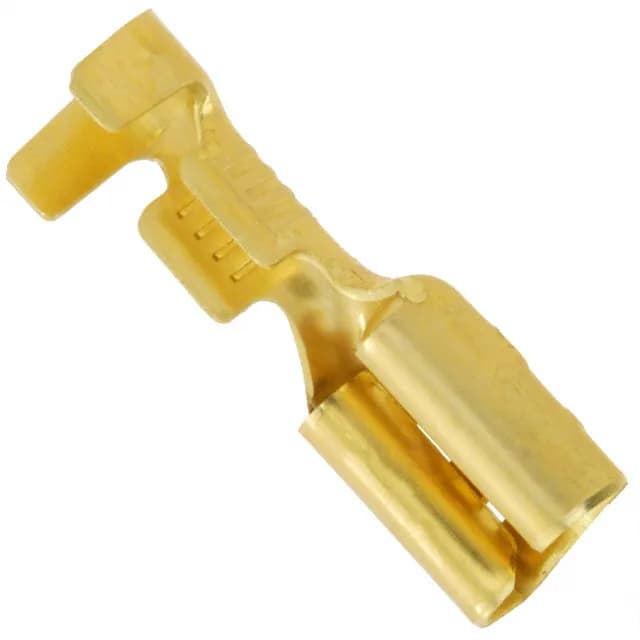

TE 42281-1 Fastin-Faston Quick-Disconnect Terminal

MPN42281-1
Active

TE Connectivity AMP Fastin-Faston quick-disconnect terminal, order code 42281-1, female, 0.250" (6.35mm) tab width, 14-18 AWG, non-insulated, brass, free hanging, crimp termination.

$0.2200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

42281-1 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.750\" (19.05mm)
Insulation diameter0.100\" ~ 0.170\" (2.54mm ~ 4.32mm)

Product details

Crimp terminal for 14-18 AWG wire

The 42281-1: Crimp termination, brass contact material, free-hanging in-line mounting — the 0.100" to 0.170" (2.54mm to 4.32mm) insulation diameter range covers common PVC and cross-linked wire jackets.

Fastin-Faston sibling comparison

Within the Fastin-Faston family, the 42281-1 shares the same 0.250" tab width, 0.032" tab thickness, and brass construction as the 42100-1 and 42282-1 — the difference is overall length: 0.750" (19.05mm) for the 42281-1 and 42100-1 versus 0.800" (20.32mm) for the 42282-1. The 42904-2 accepts 12-16 AWG with a wider insulation diameter range (0.150" to 0.190") and carries tin-plated contacts — choose the 42281-1 for 14-18 AWG circuits where brass is sufficient.

Frequently asked questions

How does 42281-1 compare to 42100-1?

The 42100-1 is functionally identical — same tab width, tab thickness, wire gauge range, insulation diameter, and overall length. It is the closest second-source within the Fastin-Faston series.
