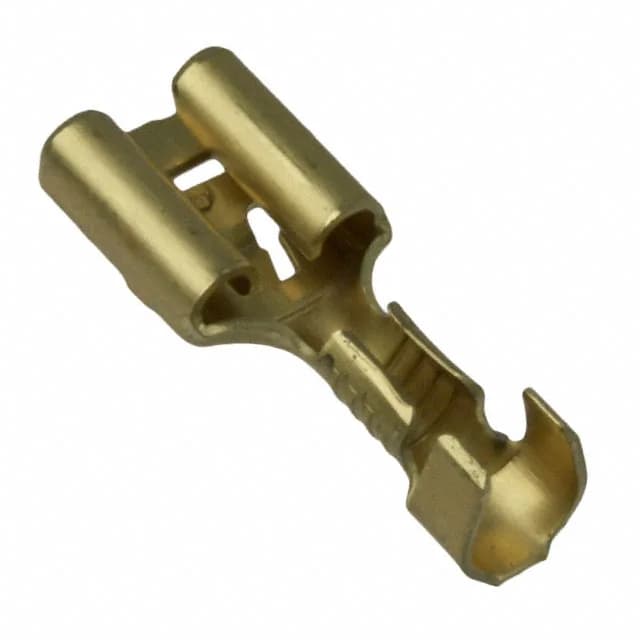

TE Connectivity AMP Fastin-Faston quick-disconnect terminal, order code 42282-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, non-insulated, brass, crimp, free hanging.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.800\" (20.32mm) |
| Insulation diameter | 0.120\" ~ 0.160\" (3.05mm ~ 4.06mm) |
The 42282-1 is a non-insulated female quick-disconnect terminal in TE's Fastin-Faston series, accepting 14-18 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The brass contact is crimp-terminated for free-hanging inline use; overall length is 0.800" (20.32mm) and the insulation diameter range is 0.120" ~ 0.160" (3.05mm ~ 4.06mm).
The 42282-1 is available through TE Connectivity AMP Connectors distribution channels. Pricing and stock are confirmed per RFQ against the BOM quantity.
The 42282-1 is ROHS3 compliant per TE's listing. No UL or IEC certification is cited in the available records.
