Tab dimensions and wire range
The 42710-1: The brass contact carries a 0.205" (5.21mm) tab width and 0.020" (0.51mm) tab thickness — the standard Faston geometry that mates with matching male tabs of the same dimensions.

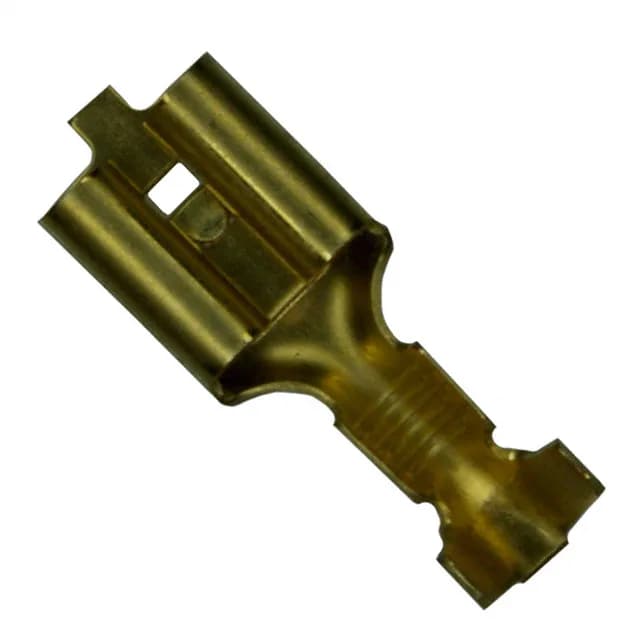

TE 42710-1 Faston Quick-Disconnect Terminal, 18-22 AWG
MPN42710-1
Active
TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 42710-1, female, 0.205" (5.21mm) tab width, 0.020" (0.51mm) tab thickness, 18-22 AWG, brass, non-insulated, crimp termination, free hanging.
$0.1500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Tab width | 0.205\" (5.21mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Length - overall | 0.616\" (15.65mm) |
| Insulation diameter | 0.085\" ~ 0.125\" (2.16mm ~ 3.18mm) |
