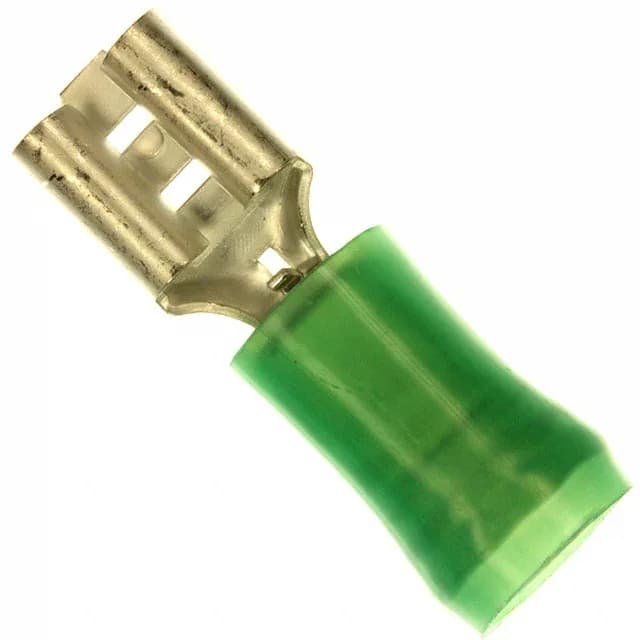

TE Connectivity AMP Connectors Faston, PIDG quick-disconnect terminal, order code 42844-2, female, 12-14 AWG, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated phosphor bronze contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston, PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 12-14 AWG |
| Color | Green |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Mating End Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 1.012\" (25.70mm) |
| Insulation diameter | 0.250\" (6.35mm) |
The 42844-2: The tin-plated phosphor bronze contact is crimp-terminated for free-hanging (in-line) installations, with non-mating end insulation covering the crimp barrel.
Within the 42844 base series the 42844-2 uses a phosphor bronze contact, while siblings 42844-1, 42844-3, and 8-42844-1 specify brass — all share the same 0.250" tab width, 12-14 AWG range, tin finish, and green insulation.
The 42844-2 is RoHS Compliant per the manufacturer's declaration. No UL or IEC listing is cited in the available product record.
