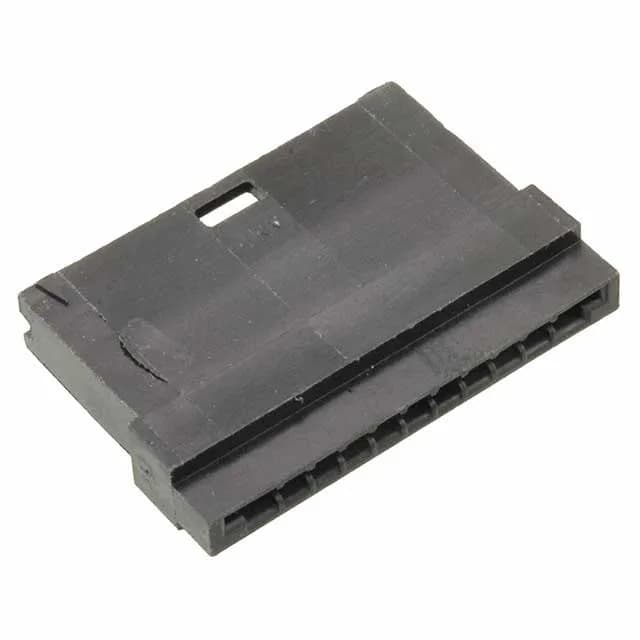

TE Connectivity AMP Connectors FFC pin housing, order code 485893-9, 11 positions, single row, 0.100" (2.54mm) pitch, 300 V, 1.5 A, detent lock, UL94 V-0 thermoplastic, bulk package.
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-32 AWG |
| Operating temperature | -65°C~105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Insulation diameter | 0.025\" ~ 0.056\" (0.64mm ~ 1.42mm) |
| Positions | 11 |
The 485893-9: The housing accepts 22-32 AWG discrete wire with an insulation diameter of 0.025" to 0.056" (0.64mm to 1.42mm) and FFC thickness from 0.05mm to 0.13mm, making it suitable for both discrete wiring and flat flex cable assemblies.
The housing ships without crimp contacts; the buyer must order the matching male pin contacts separately to populate the 11 positions.
The pitch is 0.100" (2.54mm), a standard spacing for FFC and discrete wire connectors.
