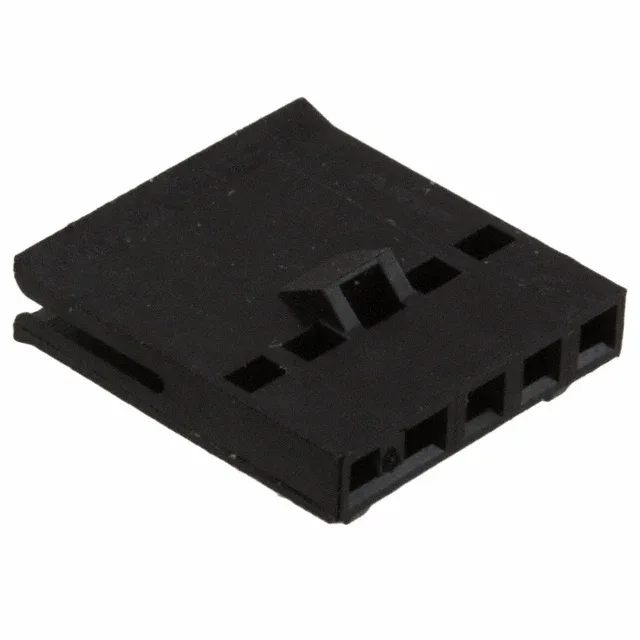

TE Connectivity AMP Connectors FFC receptacle housing, order code 487769-3, 5 positions, single row, 0.100" (2.54 mm) pitch, 1.5 A, 300 V, detent lock, UL94 V-0, black thermoplastic, bulk package.
TE 487769-3 FFC Housing, 5 Pos, 2.54mm Pitch
MPN487769-3
Active
TE Connectivity AMP Connectors FFC receptacle housing, order code 487769-3, 5 positions, single row, 0.100" (2.54 mm) pitch, 1.5 A, 300 V, detent lock, UL94 V-0, black thermoplastic, bulk package.
$1.3200Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Operating temperature | -65°C~105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Positions | 5 |
Product details
Frequently asked questions
What does the note 'Contacts Not Included' mean for the 487769-3?
The housing accepts FFC and the corresponding TE contacts must be sourced as a separate line item.
