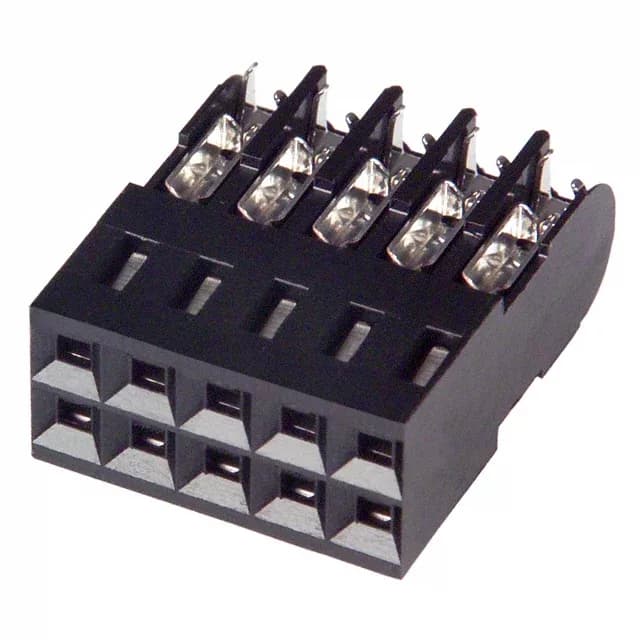

The TE Connectivity AMPMODU MT 5-102398-3 is a 10-position, 2-row IDC receptacle designed for mass-termination of 22-26 AWG discrete or ribbon cable. The closed-end housing prevents stubbing during assembly and protects the contact beams from damage when unmated.
Gold 30.0µin Contact Finish for Repeated Mating
For a harness that gets reconnected during field service, this plating saves the cost of a contact replacement cycle.
IDC Termination — Wire Range and Tooling
It accepts 22-26 AWG wire, and the slot geometry is tuned for ribbon cable as well as discrete wires. The free-hanging (in-line) mount means the connector sits on the cable, not on the board; the mating header is the PCB-side component.
It is ROHS3 Compliant.
Position Count and Pitch Drive the Mate
It mates with a 10-position, 2-row, 0.100" pitch pin header — any TE AMPMODU MT or equivalent industry-standard header with that geometry. The closed-end housing is keyed by the polarisation of the header itself; there is no separate keying feature.
