TE Connectivity AMP Connectors 5-103946-1

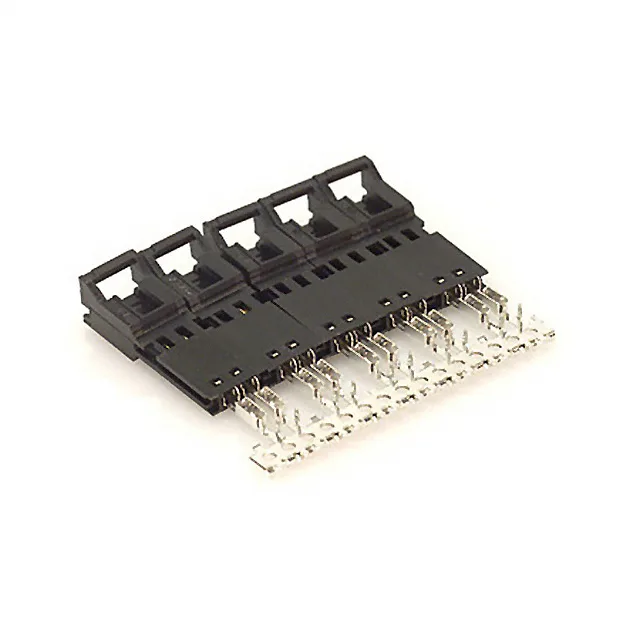

TE AMPMODU MTE 5-103946-1, 2-Pos IDC Plug, 0.100" Pitch

MPN 5-103946-1
Active

TE Connectivity AMPMODU MTE series, 5-103946-1, 2-position IDC plug, 0.100" (2.54mm) pitch, single row, male pin contacts, gold 30.0µin plating, 22-26 AWG ribbon cable, free hanging, black housing, closed end, tube package.

$1.8738 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103946-1 specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeRibbon Cable
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions2
Contact finish thickness30.0µin (0.76µm)

Product details

2-Position IDC Plug for Ribbon Cable Harnesses

The TE Connectivity AMPMODU MTE 5-103946-1 is a 2-position IDC plug designed for terminating 22-26 AWG ribbon cable. The closed-end housing prevents the plug from over-traveling into the receptacle, providing a positive mechanical stop during mating. The black color is standard for the AMPMODU MTE IDC plug line, and the connector ships in tube packaging for automated assembly lines.

IDC Termination — One-Press Ribbon Cable Assembly

Termination is via insulation displacement (IDC): the ribbon cable is aligned over the slot array and pressed down with a hand tool or press. The contact beams slice through the insulation and grip the conductor, forming a gas-tight joint without stripping or crimping individual wires. The 22-26 AWG range covers the most common ribbon cable gauges used in internal signal harnesses. The plug mates with the matching AMPMODU MTE receptacle housing (female socket contacts) to complete the wire-to-board or wire-to-wire connection. The free-hanging (in-line) mounting allows the plug to be used as a cable-end connector without a panel cutout.

MPN
5-103946-1
