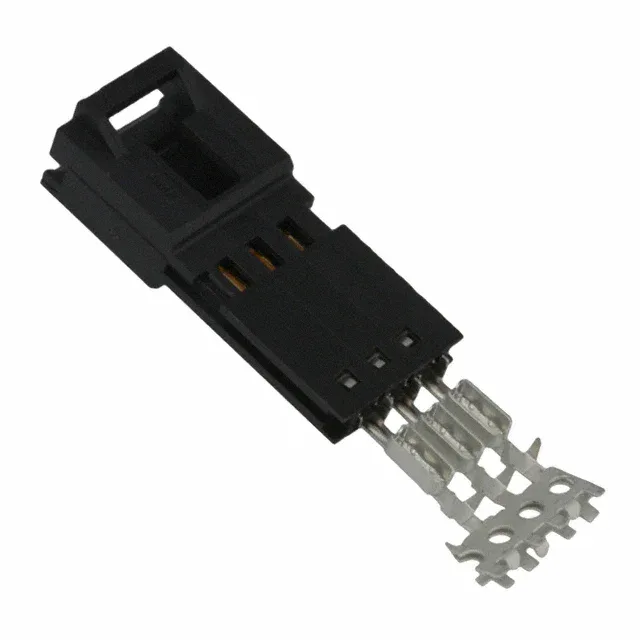

5-103948-2 — TE Connectivity AMP Connectors product photo

TE AMPMODU MTE 5-103948-2, 3-Pos IDC Plug, 0.100" Pitch

MPN5-103948-2
Active

TE AMPMODU MTE series, IDC plug, 3 positions, 1 row, 0.100" (2.54mm) pitch, gold 15.0µin contact finish, 26-30 AWG ribbon cable, free hanging, black, tube.

$2.7620Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5-103948-2 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeRibbon Cable
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typePlug
Wire gauge26-30 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions3
Contact finish thickness15.0µin (0.38µm)

Product details

The TE 5-103948-2 is a 3-position IDC plug from the AMPMODU MTE series, designed for mass-termination to 26-30 AWG ribbon cable. It uses a 0.100" (2.54mm) pitch, which matches standard ribbon cable spacing and aligns with common 0.100" header footprints.

This plug terminates ribbon cable via IDC (Insulation Displacement Contact) — no stripping or soldering required. The 26-30 AWG range covers the typical wire gauges used in flat ribbon cable assemblies for internal signal interconnects.

This is a signal connector, not a power interconnect; the narrow IDC termination and 0.100" pitch limit per-contact current to the sub-3 A range typical of the AMPMODU MTE series.

The closed-end feature on this plug prevents the cable from pushing through the housing during termination.

No official replacement or cross-reference part is on record; the 5-103948-2 is the current production order code for this 3-position AMPMODU MTE IDC plug.

Frequently asked questions

What is the mating connector for 5-103948-2?

The 5-103948-2 mates with a 3-position AMPMODU MTE receptacle header (male pin contacts) at 0.100" (2.54mm) pitch. The specific mating part depends on the mounting style needed — through-hole or SMT board-mount headers are common in the series.

Is 5-103948-2 lead-free / RoHS compliant?

Yes, the 5-103948-2 is listed as RoHS Compliant by the manufacturer.
