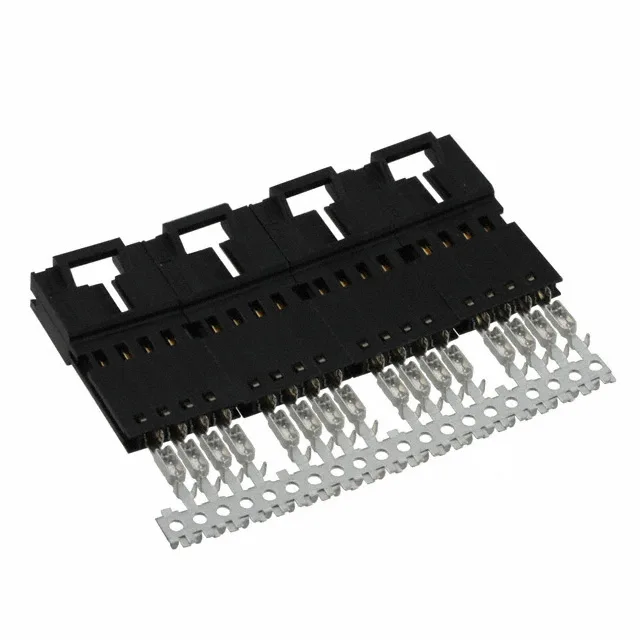

TE Connectivity AMPMODU MTE 5-103948-3, 4-position IDC plug, 0.100" (2.54mm) pitch, single row, male pin contacts, gold 15.0µin, 26-30 AWG ribbon cable, free-hanging.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Wire type | Ribbon Cable |
| Gender | Male Pin |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug |
| Wire gauge | 26-30 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.100\" (2.54mm) |
| Package | Tube |
| Features | Closed End |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 4 |
| Contact finish thickness | 15.0µin (0.38µm) |
The 5-103948-3: The closed-end feature prevents the cable from pushing through the housing during termination, which keeps the wire alignment consistent across the row.
No stripping, no crimping, no soldering. The 26-30 AWG range covers common 0.025"-pitch ribbon cable; a 28 AWG cable falls right in the middle of that range and is fully compatible. The single-row, 4-position layout is common for low-count signal buses or sensor interfaces where space on the PCB edge is tight.
The pitch is 0.100" (2.54mm), which is the standard spacing for AMPMODU MTE headers and ribbon-cable IDC connectors.
