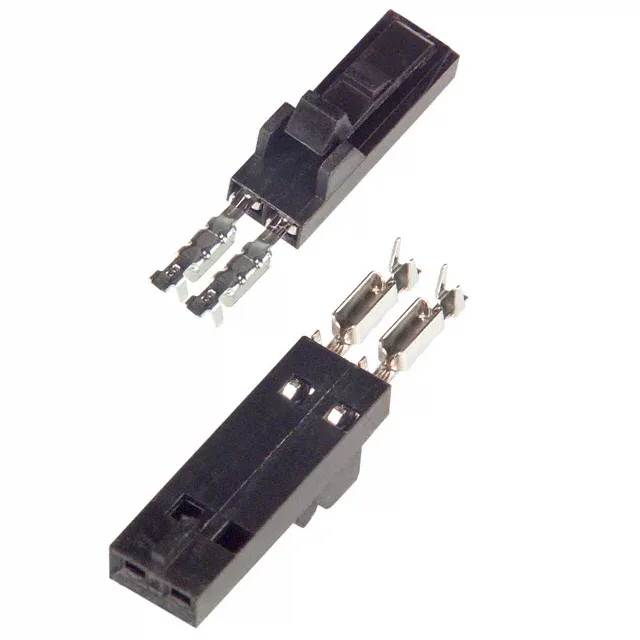

TE Connectivity AMPMODU MTE series, 5-103956-1, 2-position IDC receptacle, 0.100" (2.54mm) pitch, single row, tin-plated female socket contacts, free-hanging, latch lock, 22-26 AWG discrete wire.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Wire type | Discrete |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Wire gauge | 22-26 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.100\" (2.54mm) |
| Package | Tube |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 2 |
| Contact finish thickness | 100.0µin (2.54µm) |
The supported wire gauge range is 22-26 AWG, covering typical signal-level wiring in multi-conductor harnesses.
Tin is cost-effective for applications that don't require the corrosion resistance or cycle life of gold. For higher mating-cycle counts or corrosive environments, the AMPMODU MTE series also offers gold-plated variants.
Submit a request for quote (RFQ) to confirm current availability and pricing for your BOM quantity.
It supports 22-26 AWG discrete wire via IDC termination.
Yes, it is ROHS3 Compliant.
