TE Connectivity AMP Connectors 5-103958-4

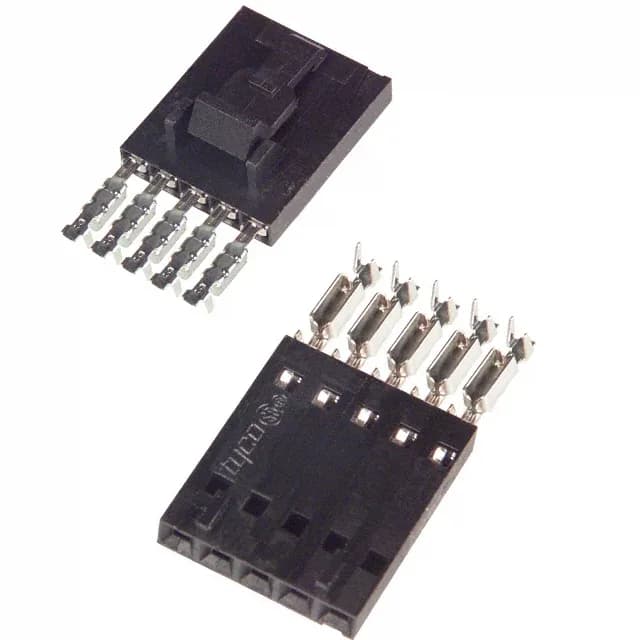

TE AMPMODU MTE 5-103958-4, 5-Pos IDC Receptacle

MPN 5-103958-4
Active

TE AMPMODU MTE receptacle, 5 positions, 0.100" (2.54mm) pitch, 1 row, IDC termination, female socket, gold 30.0µin (0.76µm) contacts, free hanging, latch lock, black, tube.

$1.7700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103958-4 specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions5
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMPMODU MTE 5-103958-4 is a 5-position, single-row receptacle that terminates discrete or ribbon cable via IDC. The closed-end feature means the IDC contacts are fully enclosed at the rear, protecting the termination from accidental shorting or contamination. Black housing is the standard colour for this variant.

Wire Range and Termination Reality

This receptacle accepts 22-26 AWG discrete wire or ribbon cable. The IDC termination pierces the insulation and makes contact with the conductor in one press operation.
