TE Connectivity AMP Connectors 5-103960-5

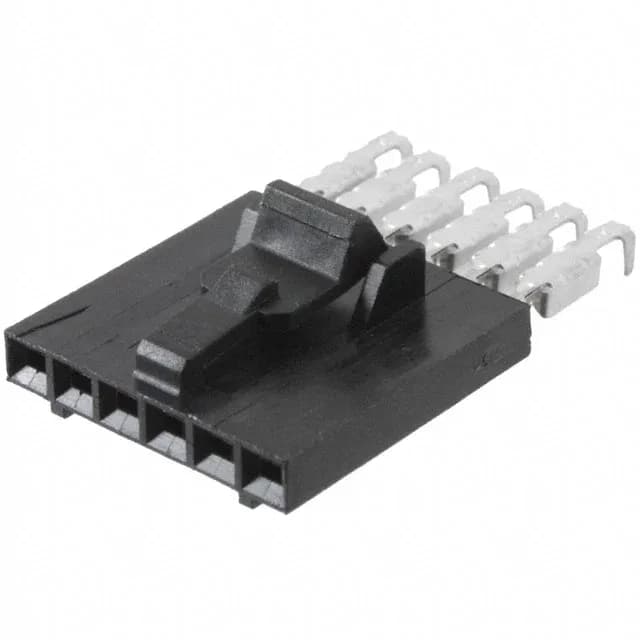

TE AMPMODU MTE 5-103960-5 Receptacle, 6 Pos IDC

MPN 5-103960-5
Active

TE Connectivity AMPMODU MTE receptacle, 5-103960-5, 6 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, 26-30 AWG, gold contact finish, latch lock, free hanging.

$2.3750 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103960-5 specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge26-30 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions6
Contact finish thickness15.0µin (0.38µm)

Product details

The TE Connectivity AMPMODU MTE 5-103960-5 is a 6-position single-row receptacle that terminates discrete or ribbon cable via IDC (insulation displacement). The 26-30 AWG wire range covers ribbon cable common in 0.100" pitch IDC assemblies.

Termination and Assembly — IDC Reality Check

IDC termination means the wire insulation is pierced by the contact tines as the cover is pressed down — no stripping, no crimping, no loose terminals to load into a housing. That makes this fast for multi-conductor ribbon cable runs, but the trade-off is that the wire gauge and type must match the contact slot geometry exactly. TE specifies 26-30 AWG for discrete or ribbon cable; using wire outside that range risks an incomplete insulation cut or a loose conductor grip. The closed-end feature means the housing is blocked at one end, so the IDC cover only goes on one way — no risk of installing it backwards. For a short jumper between boards inside an enclosure, the latch alone is sufficient.

Sourcing and Lifecycle — What to Expect

No official second-source or cross-reference on record; the AMPMODU MTE series is TE-proprietary in its keying and latch geometry.

MPN
5-103960-5
