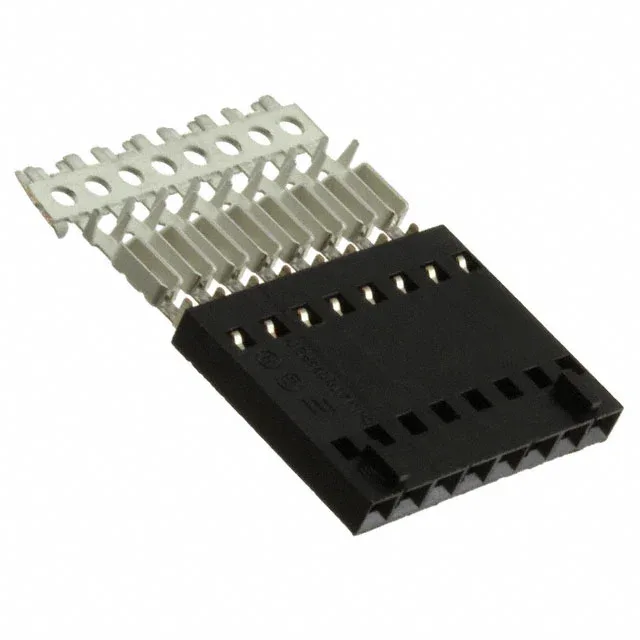

5-103960-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MTE 5-103960-7, 8-Pos IDC Receptacle

MPN5-103960-7
Active

TE Connectivity AMPMODU MTE receptacle, 5-103960-7, 8 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, gold-plated female socket contacts, closed end, latch lock, free-hanging, 26-30 AWG, black.

$2.8600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5-103960-7 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge26-30 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions8
Contact finish thickness15.0µin (0.38µm)

Product details

8-Position IDC Receptacle for Ribbon or Discrete Cable

The closed-end housing prevents the cable from stubbing against the back wall during insertion, and the latch lock secures the mating header against vibration in harness assemblies.

The 26-30 AWG range covers common signal wire sizes for ribbon cable assemblies and discrete wiring in control panels and data equipment. The black housing is a visual identifier on the harness, and the closed-end feature adds mechanical support to the cable entry point, reducing flex fatigue at the termination.

For a harness that will be disconnected and reconnected during field service or rework, the gold finish provides a reliable interface over the service life.

Mating and Fastening

The latch lock on the sides of the housing engages with corresponding ramps on the mating AMPMODU MTE header, providing an audible and tactile click when fully seated.

Frequently asked questions

What is the wire gauge range for 5-103960-7?

The 5-103960-7 receptacle terminates 26-30 AWG discrete or ribbon cable via its IDC contacts.

Is 5-103960-7 a closed end receptacle?

Yes, the 5-103960-7 features a Closed End housing, which provides a solid back wall that prevents the cable from stubbing and adds strain relief at the termination point.
