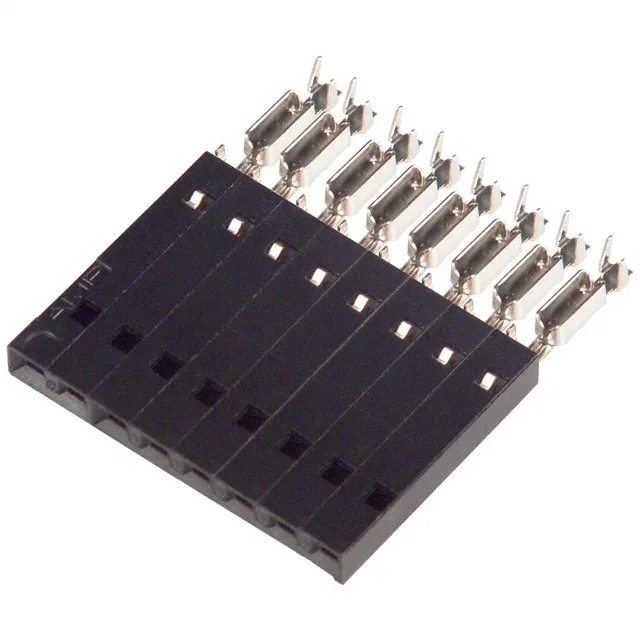

5-103974-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MTE 5-103974-7, 8 Pos IDC Receptacle

MPN5-103974-7
Active

TE Connectivity AMPMODU MTE receptacle, 8 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, 22-26 AWG ribbon cable, tin-plated contacts, free-hanging, black, tube.

$3.4150Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-103974-7 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishTin
Rows1
Positions8
Contact finish thickness100.0µin (2.54µm)

Product details

What This 8-Position IDC Receptacle Does in a Harness

The free-hanging, in-line mounting suits it for internal ribbon cable runs where a low-profile, keyed connection is needed — think disk drive cables, front-panel I/O, or card-edge harnesses inside an enclosure. The closed-end housing prevents stubbing against the header shroud, and the black colour aids visual polarity check on the assembly line.

Pitch and Footprint — What Fits

The IDC termination means no crimp tooling for individual contacts: the whole cable assembly is pressed onto the insulation-displacement forks in one operation, which speeds harness build when you are running 22-26 AWG ribbon.

The IDC termination is specific to ribbon cable; the mating half is typically a through-hole or surface-mount header soldered to the PCB.

Frequently asked questions

What header mates with 5-103974-7?

This 8-position, single-row, 0.100" pitch receptacle mates with any standard AMPMODU MTE pin header of the same pitch and position count — typically a through-hole or SMT header soldered to the PCB.

Where can I buy 5-103974-7?

This part is sourced to order against your BOM quantity.
