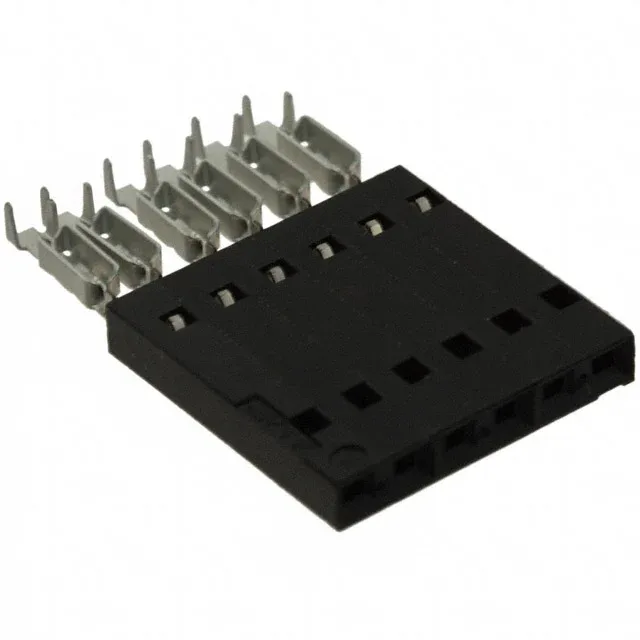

5-104439-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU MTE 5-104439-5, 6-pos IDC Receptacle

MPN5-104439-5
Active

TE Connectivity AMPMODU MTE receptacle, 5-104439-5, 6 positions, 1 row, 0.100" (2.54 mm) pitch, IDC termination, 22-26 AWG ribbon cable, gold 30.0 µin contacts, free-hanging, closed end.

$3.2700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5-104439-5 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions6
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMPMODU MTE 5-104439-5 is a 6-position, single-row receptacle designed for mass-termination of ribbon cable. It uses an IDC (Insulation Displacement Contact) termination — no stripping or crimping — just press the cable into the slot. The closed-end housing blocks moisture and flux from wicking into the cable core — a detail that matters when the connector lives inside an enclosure where humidity or wash-down residue can creep along the conductors.

Gold Contacts and Wire Range

The receptacle accepts 22-26 AWG ribbon cable, a range that covers most signal-level harnesses in control panels, test equipment, and internal board wiring. The free-hanging (in-line) mount lets it float in the harness rather than locking to a panel, so it follows the cable strain relief path.

Frequently asked questions

Where can I buy 5-104439-5 available via RFQ confirmation?

5-104439-5 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.

What wire gauge does 5-104439-5 support?

The receptacle accepts 22-26 AWG ribbon cable, terminated via IDC — no crimp tool needed, just a press.

Is 5-104439-5 a direct replacement for 5-104439-4?

The evidence does not list 5-104439-4, so a direct replacement claim cannot be confirmed. Verify the position count and keying against your existing BOM before substituting.
