0.187" Faston receptacle for 15-20 AWG

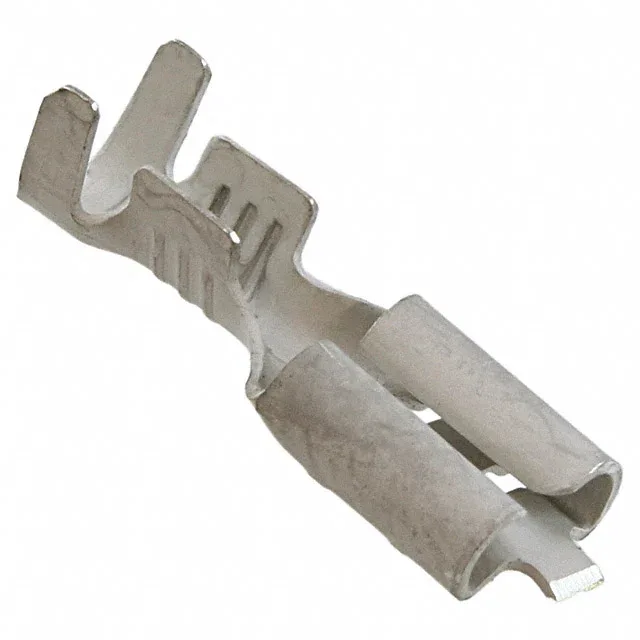

The 5-160433-6 is a non-insulated female quick disconnect receptacle in TE's Faston series, accepting 15-20 AWG wire and crimping onto a 0.187" (4.75mm) wide male tab. Tin-plated brass contact, 0.020" (0.51mm) tab thickness, overall length 0.591" (15.00mm) — the insulation diameter range is 0.091" to 0.130" (2.31mm to 3.30mm).
Same-tab-width siblings in the Faston line
At the same 0.187" tab width, the 5-160433-6 (15-20 AWG, 0.020" tab thickness) sits alongside the 100494-2 (15-20 AWG, 0.032" tab thickness) and the 170037-2 (16-20 AWG, 0.020" tab thickness) — the thicker tab on the 100494-2 suits a heavier crimp stack, while the 170037-2's tighter wire range shifts the fit toward 16-20 AWG builds.
