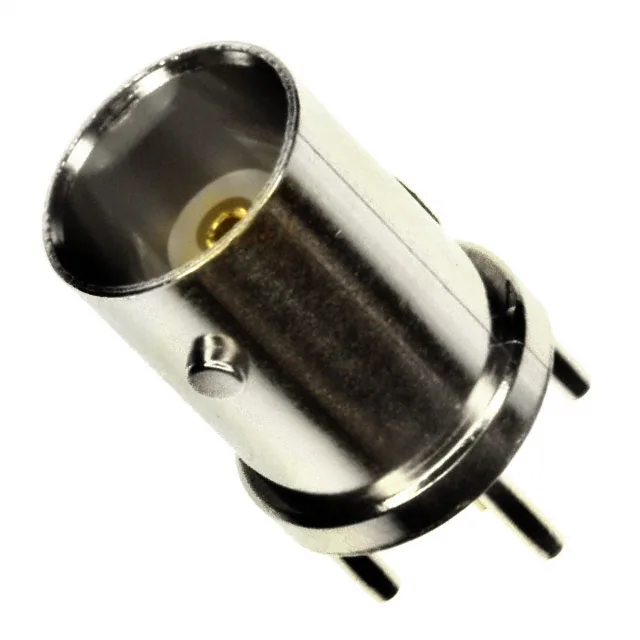

TE Greenpar BNC Jack 5-1634503-1, 50 Ohm, 4 GHz, Obsolete

MPN5-1634503-1
Obsolete

TE Connectivity Greenpar ZDC series BNC jack, female socket, 50 Ohm, 4 GHz max, 500 mating cycles, through-hole solder termination, nickel body.

$3.5200Ref. price · indicative, final on quote
5-1634503-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634503-1 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The TE Connectivity 5-1634503-1 is a BNC jack, female socket, part of the Greenpar ZDC series. It is a 50 Ohm RF connector rated to 4 GHz, with a bayonet lock coupling for quick connect/disconnect in test and instrumentation setups. The through-hole solder termination suits PCB mounting, and the zinc alloy body with nickel finish provides RF shielding and corrosion resistance.

This part is listed as Obsolete per the manufacturer. No official successor or cross-reference is on record. For existing BOM lines, the connector is sourced through independent distribution — quoted to order against an RFQ.

The centre contact is gold-plated phosphor bronze, rated for 500 mating cycles — sufficient for repeated field service or test jig use. The dielectric is polymethylpentene (PMP), and the operating temperature range spans -55°C to 85°C.

Frequently asked questions

What is the impedance of 5-1634503-1?

The 5-1634503-1 is a 50 Ohm BNC jack, rated to 4 GHz maximum frequency.

What is the connector type and mounting style of 5-1634503-1?

It is a BNC jack, female socket, with a bayonet lock fastening. The mounting style is through hole with solder termination for the centre contact and shield.

How many mating cycles does 5-1634503-1 have?

The connector is rated for 500 mating cycles, with gold-plated centre contacts to maintain signal integrity over repeated connections.
