5-1634504-1 TE BNC Jack, 50 Ohm, 4 GHz, Obsolete

MPN 5-1634504-1
Obsolete

TE Connectivity ZDC Greenpar series BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead, bayonet lock, solder cup, gold center contact, nickel body.

$3.4800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5-1634504-1 key specifications
ParameterValue
SeriesZDC, Greenpar
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver, White
Dielectric materialPolybutylene Terephthalate (PBT), Polyester
Center contact materialPhosphor Bronze

All specifications

5-1634504-1 additional specifications
ParameterValue
PackageBulk
FeaturesIsolated

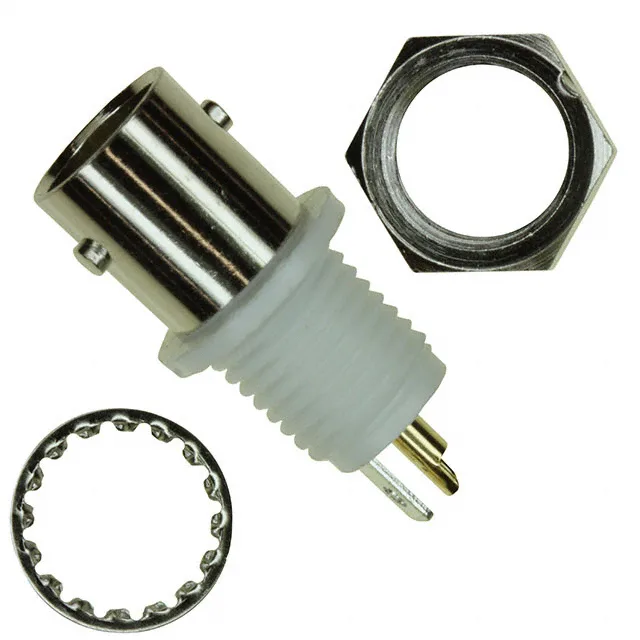

Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

Obsolete — Sourcing Note

The 5-1634504-1 is listed as Obsolete per the manufacturer lifecycle record. For a current-production alternative, the BOM position may need a parametric review against a similar BNC jack in the same series.

It is a panel-mount bulkhead connector with a rear-side nut, bayonet lock fastening, and solder cup termination for the centre contact. Dielectric material is PBT/polyester. The connector is rated for 500 V and 500 mating cycles.

The gold centre contact and nickel body finish support consistent contact resistance over the 500-cycle rated life. The isolated feature indicates the connector body is electrically isolated from the panel, which matters for ground-loop management in sensitive measurement setups.

Kit Contents and Mounting

Supplied as a 3-piece kit: one connector, one lockwasher, and one nut. The bulkhead mounting feature with rear-side nut allows the jack to be secured to a panel from the inside — typical for enclosure feed-through applications. The solder cup termination requires hand soldering of the centre conductor; the shield termination is also solder-type.
