TE Greenpar ZDC 5-1634504-2 BNC Jack, 75 Ohm, 2 GHz

MPN5-1634504-2
Obsolete

TE Connectivity Greenpar ZDC series BNC jack, female socket, 75 Ohm impedance, 2 GHz max frequency, panel mount with bulkhead rear-side nut, solder cup termination, gold-plated center contact, 500 mating cycles, includes lockwasher and nut.

$5.0000Ref. price · indicative, final on quote
5-1634504-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634504-2 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-55°C~85°C
Body materialZinc Alloy
Housing colorSilver, White
Dielectric materialPolybutylene Terephthalate (PBT), Polyester
Center contact materialPhosphor Bronze
PackageBulk
FeaturesIsolated

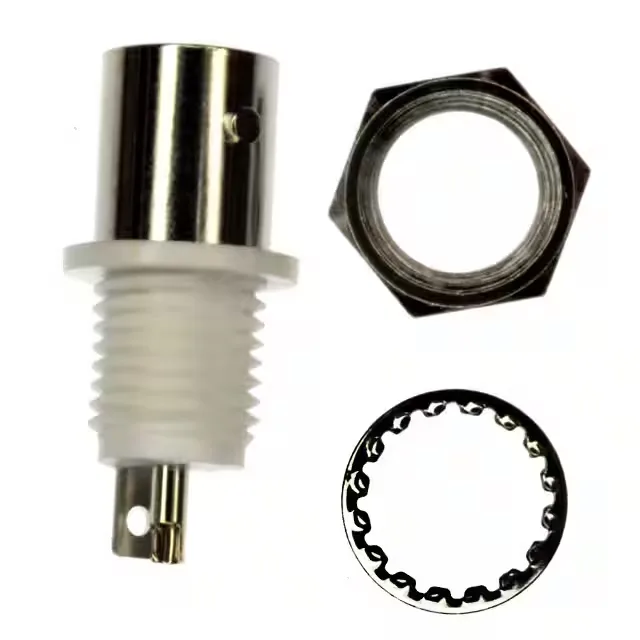

Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

The 5-1634504-2: The 75 Ohm impedance sets it apart from the more common 50 Ohm BNC; it's the standard for composite video, broadcast, and CCTV distribution where the signal path is designed around 75 Ohm coax like RG-59 or RG-6. The 2 GHz bandwidth covers analog video baseband and digital SDI signals through 3G-SDI rates.

The 2 GHz frequency ceiling means it handles standard-definition and high-definition video without roll-off; above that, the return loss degrades. The zinc alloy body with nickel finish provides RF shielding and stands up to the handling abuse of patch panels.

Mounting and Installation Details

No direct replacement order code is listed. The supply channel is independent distribution surplus or last-time-buy inventory.
