The 50 Ohm characteristic impedance and 4 GHz maximum frequency define the usable signal bandwidth — this BNC jack supports baseband and low-RF signals up into the UHF and lower microwave range. The 500 mating cycles mean the gold-plated centre contact can tolerate regular reconnection without degrading contact resistance — a common requirement on test jigs and patch panels where connectors see daily use.

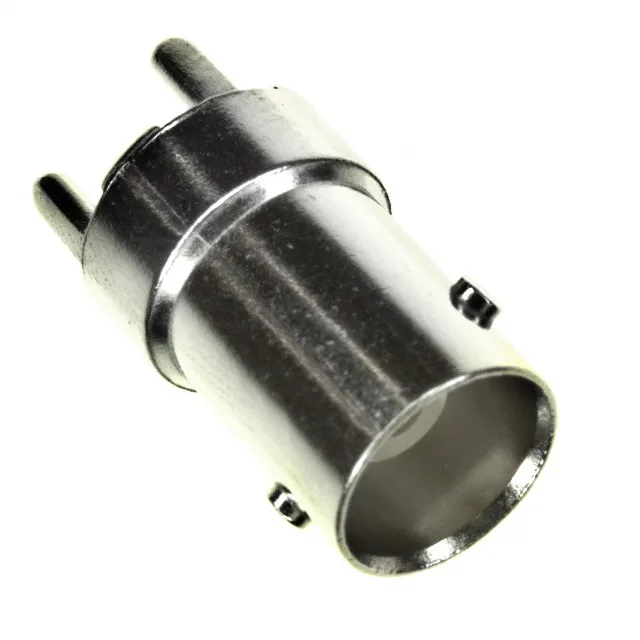

TE 5-1634506-1 BNC Jack, 50 Ohm, 4 GHz, Obsolete
MPN5-1634506-1
Obsolete
TE Connectivity Greenpar ZDC series BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, through-hole solder, bayonet lock, 1 port, bulk.
$3.5200Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | ZDC, Greenpar |
| Mounting type | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc Alloy |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Is 5-1634506-1 obsolete?
Yes, the TE 5-1634506-1 is listed as Obsolete. Submit an RFQ for current availability and pricing.
