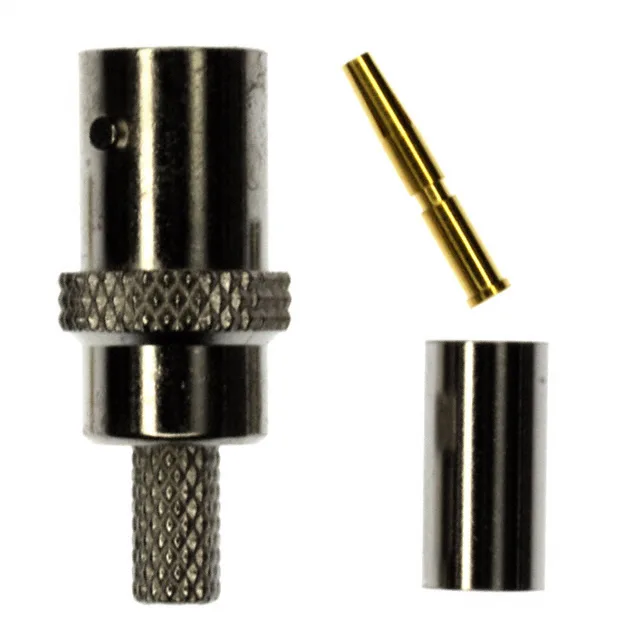

5-1634511-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5-1634511-2 BNC Jack, 50 Ohm, 4 GHz, Obsolete

MPN5-1634511-2
Obsolete

TE Connectivity ZDC Greenpar series BNC jack, female socket, 50 Ohm, 4 GHz, RG-58C/141A/Belden 9907, crimp termination, bayonet lock, nickel body, gold center contact.

$6.8800Ref. price · indicative, final on quote
5-1634511-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634511-2 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-58C, 141A, Belden 9907
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The connector ships as a kit including the body, one crimp contact, one ferrule, and one sleeve — four pieces total — ready for field assembly onto the specified cable types.

Cable compatibility and termination

This jack is designed for RG-58C, 141A, and Belden 9907 cables. Both shield and center contact use crimp termination.

The 5-1634511-2 is listed as Obsolete by TE Connectivity. No official replacement or successor part number is documented in the available records. Engineers planning a new design should evaluate the current ZDC Greenpar catalog for an active BNC jack with the same 50 Ohm impedance and RG-58 cable compatibility.

Construction and environmental ratings

The voltage rating is 500 V. The bayonet lock provides positive retention without requiring a wrench, and the single-port design keeps the assembly compact for panel or cable-mount installations.

Frequently asked questions

Is the 5-1634511-2 obsolete?

Yes, TE Connectivity lists the 5-1634511-2 as Obsolete. No official replacement part number has been published. For new designs, select an active BNC jack from the current ZDC Greenpar catalog.

What cable group is the 5-1634511-2 for?

The connector is designed for RG-58C, 141A, and Belden 9907 coaxial cables. The included ferrule and sleeve match the dielectric and braid dimensions of these cable types.

What is the impedance of the 5-1634511-2?

The 5-1634511-2 is a 50 Ohm BNC jack, the standard impedance for video, test equipment, and RF instrumentation applications.

Is the 5-1634511-2 compatible with RG58 cable?

Yes, RG-58C is one of the specified cable types for this connector. Use the correct hex crimp die for RG-58 class cable to terminate both the shield and center contact.
