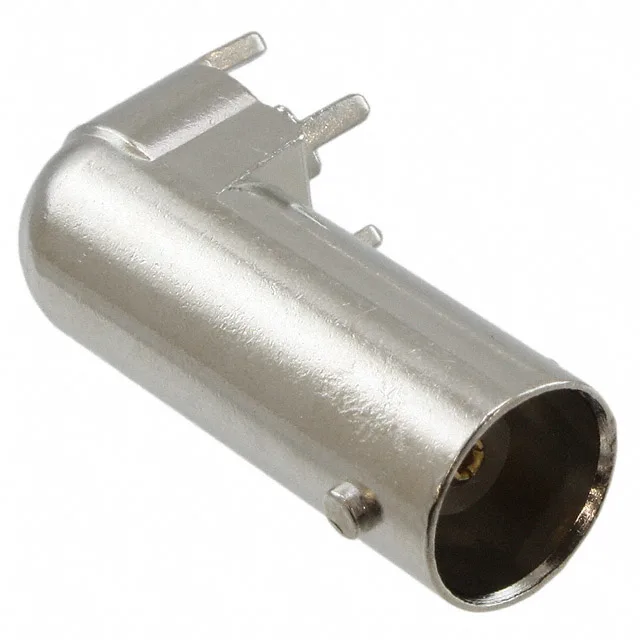

TE 5-1634513-1 BNC Jack, 50 Ohm, 2 GHz, Right-Angle

MPN5-1634513-1
Obsolete

TE Connectivity ZDC/Greenpar BNC jack, 50 Ohm, 2 GHz, right-angle through-hole, gold-plated center contact, nickel body, 500 mating cycles.

$9.7400Ref. price · indicative, final on quote
5-1634513-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634513-1 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeThrough Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Right-Angle BNC Jack for Legacy RF Interconnects

The 5-1634513-1: It carries a female socket interface with a bayonet lock for quick-connect/disconnect in test equipment, instrumentation, and RF distribution panels.

RF and Mechanical Specs at a Glance

The 50 Ohm impedance and 2 GHz frequency ceiling make this jack suitable for baseband and lower-RF signal paths — think oscilloscope inputs, signal generators, and rack-mount patch panels. The zinc alloy body with nickel finish provides RF shielding and mechanical ruggedness.

Frequently asked questions

Is 5-1634513-1 obsolete?

Yes, the 5-1634513-1 is officially obsolete per TE Connectivity. It is no longer in production and has no published successor.
