TE Connectivity AMP Connectors 5-1634514-1

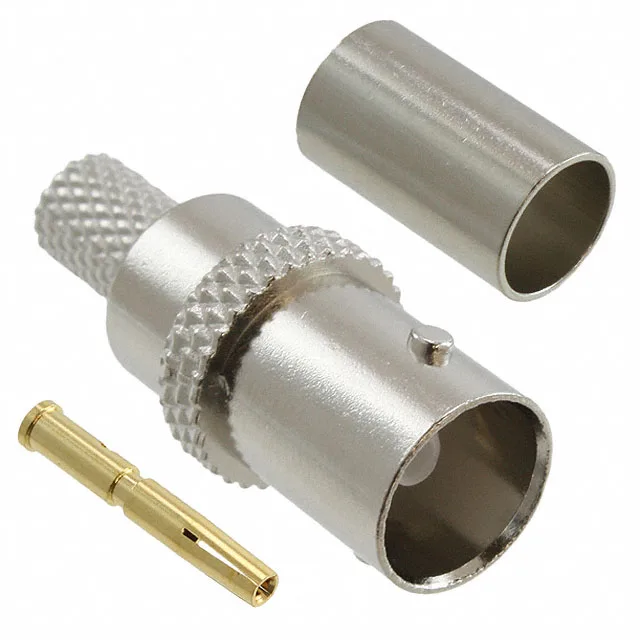

TE Connectivity 5-1634514-1 BNC Jack, 75 Ohm, 4 GHz

MPN 5-1634514-1
Obsolete

TE Connectivity ZDC, Greenpar series BNC jack, female socket, 75 Ohm, 4 GHz, 500 V, 500 mating cycles, crimp termination, bulk pack.

$6.8800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5-1634514-1 key specifications
ParameterValue
SeriesZDC, Greenpar
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-59B, 62A, 140, 210
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze

All specifications

5-1634514-1 additional specifications
ParameterValue
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Obsolete — What That Means for Sourcing

The TE Connectivity 5-1634514-1 is listed as Obsolete on the manufacturer's lifecycle record. There is no official replacement order code on file.

75 Ohm BNC Jack — Video and Broadband Signal Path

Body is zinc alloy with nickel finish, dielectric is polymethylpentene (PMP).

Cable Compatibility — Which Coax It Fits

Compatible with RG-59B, RG-140, and RG-210 coax cables. These are 75 Ohm video and broadband cables.
