TE Greenpar ZDC BNC Jack, 50 Ohm, 4 GHz, Bulkhead

MPN5-1634523-1
Obsolete

TE Connectivity Greenpar ZDC series BNC jack, 50 Ohm, 4 GHz, panel mount bulkhead, bayonet lock, solder cup, gold centre contact, 500 V, 500 mating cycles.

$1.5600Ref. price · indicative, final on quote
5-1634523-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634523-1 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk

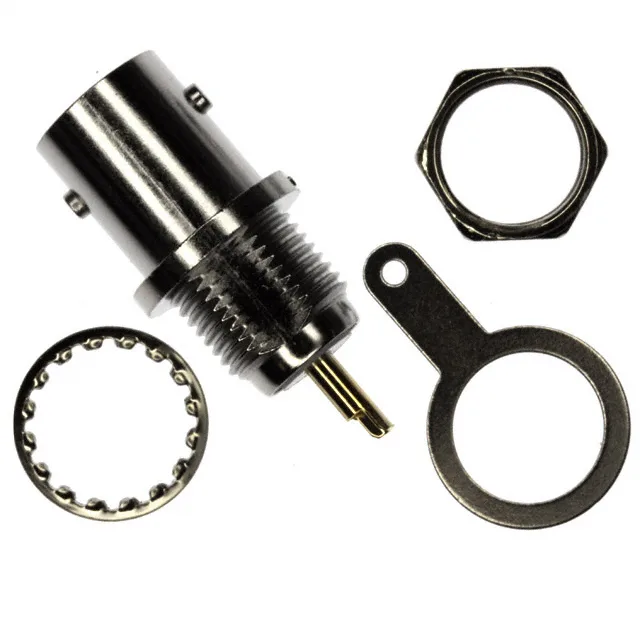

Includes4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder Tag
Contact terminationSolder Cup
Center contact platingGold

Product details

50 Ohm BNC Bulkhead Jack — 5-1634523-1

It is a female socket connector with a bayonet lock, rated for 500 V and a maximum frequency of 4 GHz. The kit includes the connector body, lockwasher, nut, and solder tag — everything needed for a single bulkhead installation. The centre contact is gold-plated phosphor bronze, good for 500 mating cycles, and the zinc alloy body carries a nickel finish.

No official successor order code is on record. For a BOM line that needs this exact order code, the procurement path is the surplus and broker market.

This BNC jack mounts through a bulkhead panel and is secured with the included rear-side nut and lockwasher. The shield termination is via a solder tag — a tab that accepts a ground wire or braid. The centre contact terminates with a solder cup, requiring the signal conductor to be tinned and soldered into the cup. The dielectric is polymethylpentene (PMP), a low-loss material that supports the 4 GHz bandwidth.

500 Mating Cycles at 4 GHz

Frequently asked questions

Where can I buy 5-1634523-1 and how do I get a price?

The 5-1634523-1 is an obsolete part sourced through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time against your BOM quantity.

What is the impedance of 5-1634523-1?

The 5-1634523-1 is a 50 Ohm BNC connector, rated for use up to 4 GHz.

Does 5-1634523-1 work with RG58 cable?

The 5-1634523-1 is a bulkhead jack with a solder-cup centre contact and a solder-tag shield termination — it does not accept a crimped coaxial cable directly. It is designed for a soldered connection to a signal wire and ground braid, not for a standard RG58 crimp ferrule.
