TE Connectivity AMP Connectors 5-1634552-1

TE Connectivity 5-1634552-1 F-Type Jack, 75 Ohm, 1 GHz

MPN 5-1634552-1
Obsolete

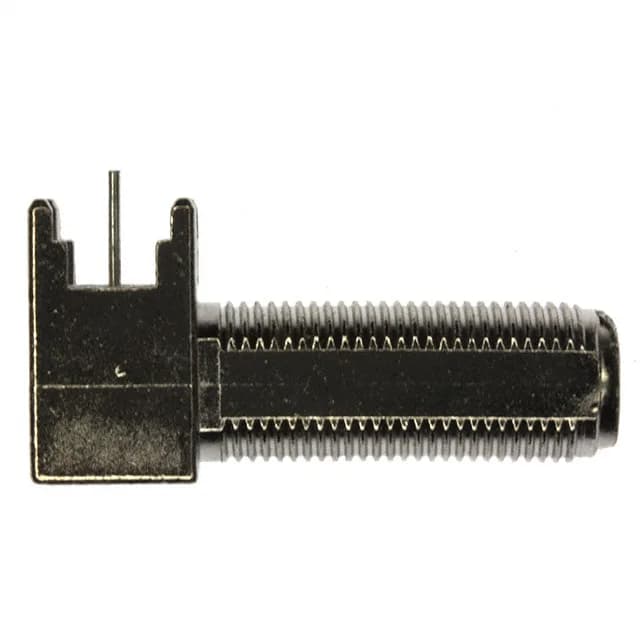

TE Connectivity ZDC/Greenpar F-type jack, female socket, 75 Ohm, 1 GHz max, 500 V, panel mount bulkhead with right-angle through-hole solder termination, nickel-plated zinc alloy body.

$2.6900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5-1634552-1 key specifications
ParameterValue
SeriesZDC, Greenpar
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze

All specifications

5-1634552-1 additional specifications
ParameterValue
PackageBulk
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingTin

Product details

The TE Connectivity 5-1634552-1 is an F-type jack, female socket from the ZDC/Greenpar series — a 75-Ohm RF connector designed for CATV, satellite IF, and broadband video distribution. It carries a 1 GHz frequency ceiling and a 500 V voltage rating, putting it in the broadcast-grade tier of F-connectors rather than the consumer-grade fittings common on set-top boxes.

This jack mounts through a bulkhead panel using a front-side nut — the threaded body passes through the panel hole and the nut tightens from the front, which means the connector can be installed or replaced without accessing the rear of the panel. The threaded fastening type gives a secure mechanical mate that won't vibrate loose in a head-end rack or outdoor pedestal.

The 5-1634552-1 is listed as Obsolete per the manufacturer. No official successor order code is recorded.

The 75 Ohm impedance is non-negotiable for this connector — it matches the characteristic impedance of CATV coax (RG-6, RG-11) and broadcast video distribution. A 50 Ohm system will see a mismatch reflection at this interface. The 1 GHz bandwidth covers the full DOCSIS 3.1 upstream and downstream spectrum plus satellite L-band IF, but not 5G mid-band or microwave links.
