TE 5-1634556-0 BNC Jack, 50 Ohm, 4 GHz, Obsolete

MPN5-1634556-0
Obsolete

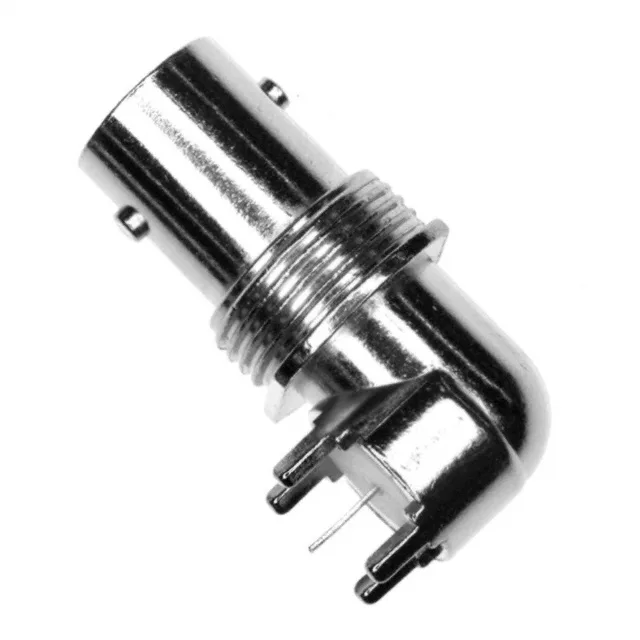

TE Connectivity ZDC/Greenpar series BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead with right-angle solder termination, nickel body, gold centre contact, 500 mating cycles.

$5.8600Ref. price · indicative, final on quote
5-1634556-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1634556-0 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Mounting and termination detail

Lifecycle reality — obsolete with no official replacement

The TE 5-1634556-0 is listed as obsolete. No official successor order code is on record. The ZDC/Greenpar series is a legacy line, so if you are maintaining an existing build, confirm the mating half and panel cut-out match before committing to a broker buy.

The 50 Ohm impedance and 4 GHz maximum frequency define the usable bandwidth — this jack will pass signals cleanly up to 4 GHz before the return loss degrades. The 500 V rating is the dielectric withstand between centre contact and shield, governed by the polymethylpentene (PMP) insulator; it is not a continuous operating voltage but a peak rating for the air gap and creepage path. The gold centre contact plating supports the 500-cycle mating life without fretting corrosion — important if this jack lives on a panel that gets re-patched regularly.

Frequently asked questions

What is the impedance and frequency rating of 5-1634556-0?

The 5-1634556-0 is a 50 Ohm BNC jack rated to 4 GHz maximum frequency. The 500 V voltage rating and gold-plated centre contact support RF signal paths in test and instrumentation applications.
