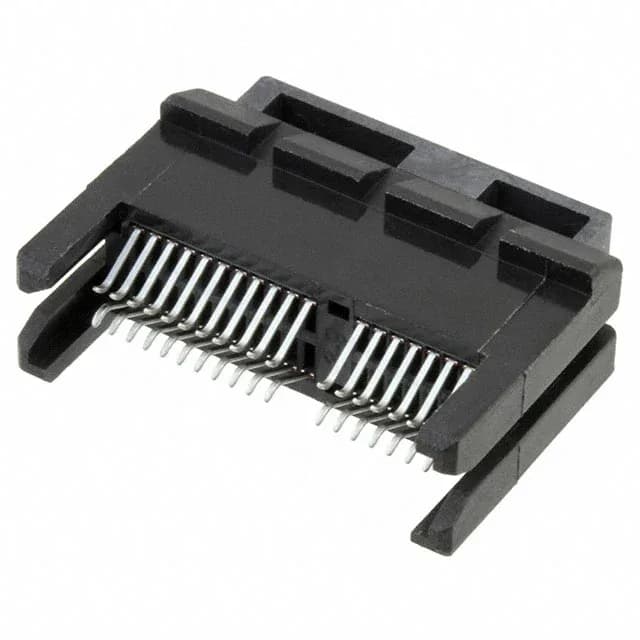

TE Connectivity AMP Connectors, 5-1734857-5, PCI Express female card-edge connector, 36 positions, 0.039" (1.00mm) pitch, dual read, gold-plated contacts, locking ramp, board-edge straddle-mount, active production.
| Parameter | Value |
|---|---|
| Card type | PCI Express™ |
| Mounting | Board Edge, Straddle Mount |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyamide (PA9T), Nylon 9T |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Card Extender, Locking Ramp |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 5-1734857-5 is a female PCI Express card-edge connector from TE Connectivity, with 36 positions arranged on a 0.039" (1.00mm) pitch across two rows. The dual read-out design mates with the standard 0.062" (1.57mm) thick PCI Express card edge. The locking ramp and card extender features provide positive retention and ease of insertion during board assembly or field replacement.
The pitch is 0.039" (1.00mm) with 36 positions across two rows.
Yes, the connector includes a locking ramp and a card extender feature for secure mating and ease of insertion.
The datasheet is available from TE Connectivity's documentation portal. Search the base product number 1734857 for the full drawing and electrical ratings.
