TE Connectivity 5-1814820-1 ZDC Greenpar Mini UHF Jack

MPN 5-1814820-1
Obsolete

TE Connectivity ZDC Greenpar series, mini UHF jack, female socket, right-angle through-hole, 1 port, threaded coupling, 335 V, 2 GHz, 500 mating cycles, nickel body, tin centre contact, bulk.

$3.1500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5-1814820-1 key specifications
ParameterValue
SeriesZDC, Greenpar
MountingThrough Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max2 GHz
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialPhosphor Bronze
PackageBulk

All specifications

5-1814820-1 additional specifications
ParameterValue
ImpedanceNon-Constant
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingTin

Product details

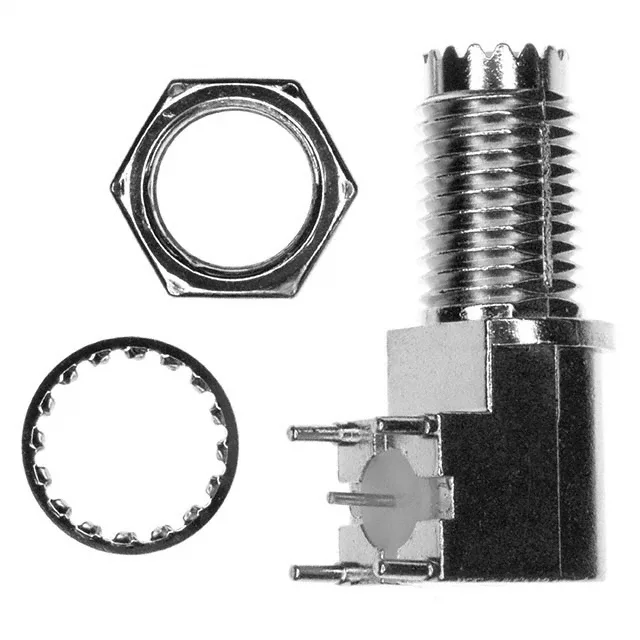

The TE Connectivity 5-1814820-1 is a ZDC Greenpar series mini UHF jack — a female socket with threaded coupling, right-angle through-hole mounting, and a single port. It is built for RF signal paths up to 2 GHz, with a voltage rating of 335 V and a rated mating cycle life of 500 cycles. The body is zinc alloy with nickel finish, the centre contact is phosphor bronze with tin plating, and the dielectric is polyethylene. This connector is part of the legacy Greenpar line, used in test equipment, instrumentation, and RF distribution panels where a compact threaded RF interconnect is needed.

The 2 GHz frequency ceiling is the practical bandwidth limit — above that, the non-constant impedance and the mini-UHF interface geometry introduce mismatch loss. For sub-1 GHz work (ISM, LMR, broadcast auxiliary) this connector is a cost-effective threaded alternative to a type-N or BNC. The 335 V rating is high for the form factor, so it handles RF power levels that would arc across a lower-voltage coaxial connector. 500 mating cycles is a solid field-service life for a threaded RF connector; the tin centre contact plating is adequate for moderate cycle counts in a clean indoor environment, but if frequent reconnects are expected, a gold-plated variant would extend service life.

No direct replacement or cross-reference is listed on record. If a pin-compatible alternative is acceptable, a parametric search on mini UHF jacks with the same threaded interface, right-angle through-hole mounting, and 2 GHz bandwidth may yield a current-production option, but no official cross-reference exists.
