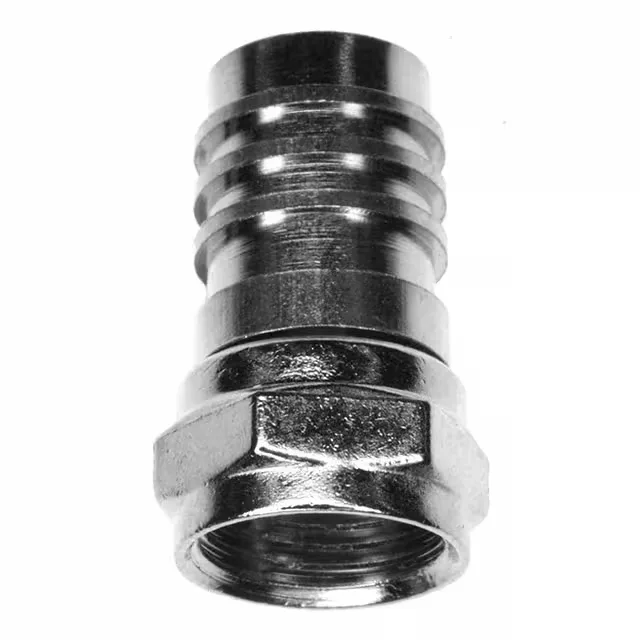

5-1814821-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5-1814821-1 F-Type Plug, 75 Ohm, 1 GHz, Obsolete

MPN5-1814821-1
Obsolete

TE Connectivity ZDC/Greenpar series F-type plug, male pin, 75 Ohm, 1 GHz, crimp shield termination, nickel brass body, free-hanging threaded coupling, 500 V, Bulk pack.

$1.4000Ref. price · indicative, final on quote
5-1814821-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1814821-1 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max1 GHz
Cable groupRG-59B, 62A, 140, 210
Operating temperature-65°C~85°C
Body materialBrass
Housing colorSilver
PackageBulk
Impedance75Ohm
Body finishNickel
Number of ports1
Shield terminationCrimp

Product details

F-Type Plug for 75 Ohm Video/CATV Systems

The TE Connectivity 5-1814821-1 is a male F-type plug from the ZDC/Greenpar series, designed for 75 Ohm video distribution and CATV infrastructure. It accepts RG-59B, 62A, 140, and 210 coax cables — the common drop and trunk cables in broadband systems — with a crimp shield termination for consistent RF ground.

Key RF and Electrical Ratings

Rated at 75 Ohm impedance with a frequency ceiling of 1 GHz.

The plug is crimp-terminated to the cable shield. It fits RG-59B, RG-140, and RG-210 cables.

No official successor order code is recorded — the ZDC/Greenpar series has been superseded by newer F-type connector families. For a BOM that specifies this exact order code, confirm availability and pricing at quote time; the storefront can also advise on current-generation F-type alternatives that maintain the 75 Ohm, 1 GHz, crimp-termination profile.

Frequently asked questions

Where can I buy the 5-1814821-1?

The 5-1814821-1 is obsolete and sourced through independent distribution on a surplus or last-time-buy basis. Submit an RFQ to the storefront for current availability and pricing — confirmed at quote time against your BOM quantity.

What cable does 5-1814821-1 connect?

This F-type plug accepts RG-59B, RG-62A, RG-140, and RG-210 coaxial cables, with a crimp shield termination.

What is the impedance of 5-1814821-1?

The 5-1814821-1 is a 75 Ohm connector, matched to video and CATV distribution systems.

Does 5-1814821-1 work with RG-59?

Yes, RG-59B is listed in the compatible cable group for this plug.
