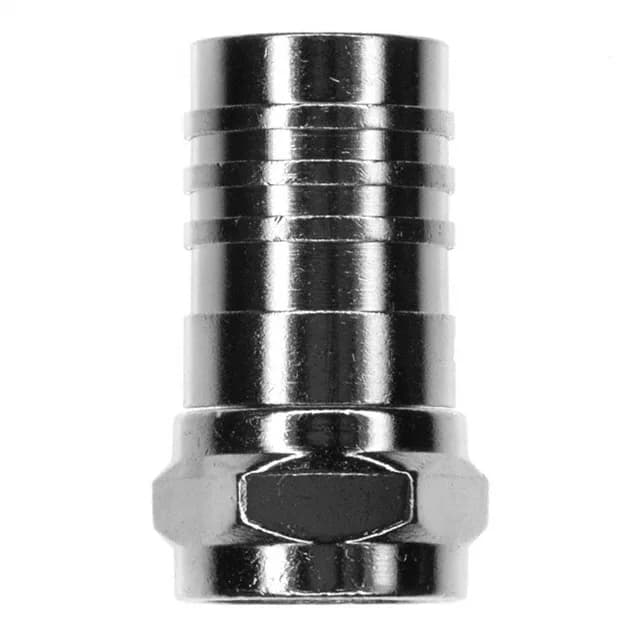

It accepts CT125-group cable and terminates the shield with a crimp ferrule — the standard field-install method for drop cable in CATV and satellite distribution. The nickel-plated brass body and threaded coupling nut give a weather-tight mate to any F-type female jack.
75 Ohms impedance, 1 GHz max frequency, 500 V rating. CT125 cable group.
No official replacement order code is on record.
Free-hanging (in-line) plug — no panel cut-out needed. Strip the cable to the CT125 prep dimensions, crimp the centre pin, slide the body over the braid and dielectric, then crimp the shield ferrule. The threaded coupling nut mates to any standard F-type female port on a wall plate, splitter, or head-end chassis.
