TE Connectivity AMP Connectors 5-2301994-3 — Modular / RJ Connectors

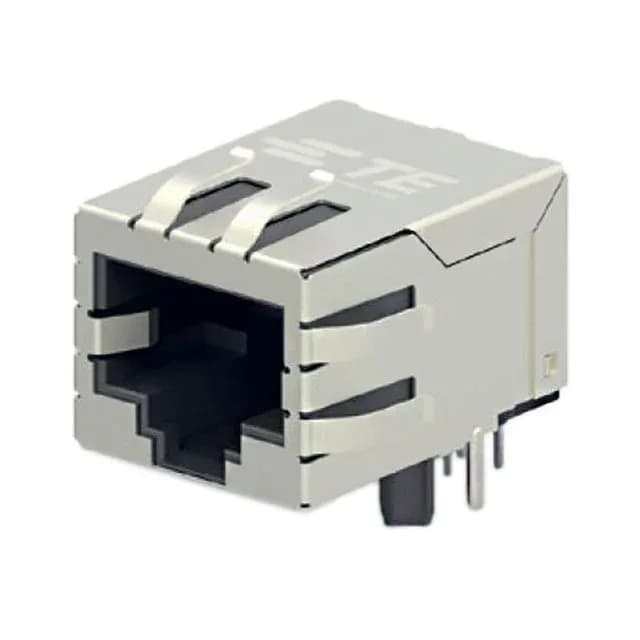

TE 5-2301994-3 RJ45 Jack, Shielded, Right-Angle, Board Lock

MPN5-2301994-3
Active

TE Connectivity RJ45 jack, 1 port, 90° right-angle, through-hole, shielded with EMI finger, board lock, gold 30.0µin contacts, LCP housing, -40°C to 85°C, 10/100 Base-T.

$6.6100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-2301994-3 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-2301994-3 key specifications
ParameterValue
MountingThrough Hole
Connector typeRJ45
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Shield materialBrass
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Height above board0.543\" (13.80mm)
PackageTray
FeaturesBoard Lock
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

5-2301994-3 additional specifications
ParameterValue
TerminationSolder
Applications10/100 Base-T, AutoMDIX
Tab directionUp
Contact finishGold
Rows1
Number of ports1
Contact finish thickness30.0µin (0.76µm)
Number of cores per jack4

Product details

Shielded RJ45 for 10/100 Base-T with EMI Control

The TE Connectivity 5-2301994-3 is a single-port RJ45 jack built for 10/100 Base-T Ethernet applications.

Ethernet Duty and Pinout Reality

This jack is rated for 10/100 Base-T and AutoMDIX — Fast Ethernet, not Gigabit. 10/100 Base-T uses two of the four twisted pairs (pins 1,2,3,6), which aligns with the 4 cores per jack; the unused pairs are simply not connected inside the jack. AutoMDIX support means the PHY can auto-sense a straight or crossover cable, simplifying board layout by removing the need for an external crossover switch.

Right-angle through-hole mounting with solder termination. The tab faces up. Tray packaging — typical for manual or low-volume assembly lines.

Active lifecycle per TE.

Frequently asked questions

Where can I buy the TE 5-2301994-3 RJ45 jack?

The 5-2301994-3 is sourced to order through our distribution network. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

Is 5-2301994-3 a shielded RJ45 connector?

Yes. The 5-2301994-3 includes a full shield and an EMI finger that contacts the panel cutout for conducted noise bleed.
