TE Connectivity AMP Connectors 5-2337939-7, PCI Express™ female card-edge connector, 98 positions, 0.039" (1.00mm) pitch, dual readout, surface mount, gold 30.0µin contacts, black LCP housing, tray.
| Parameter | Value |
|---|---|
| Card type | PCI Express™ |
| Type | Cantilever |
| Mounting | Surface Mount |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Guide, Locking Ramp, Pick and Place, Solder Retention |
| Read out | Dual |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 98 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Bay, row) | 11; 38 |

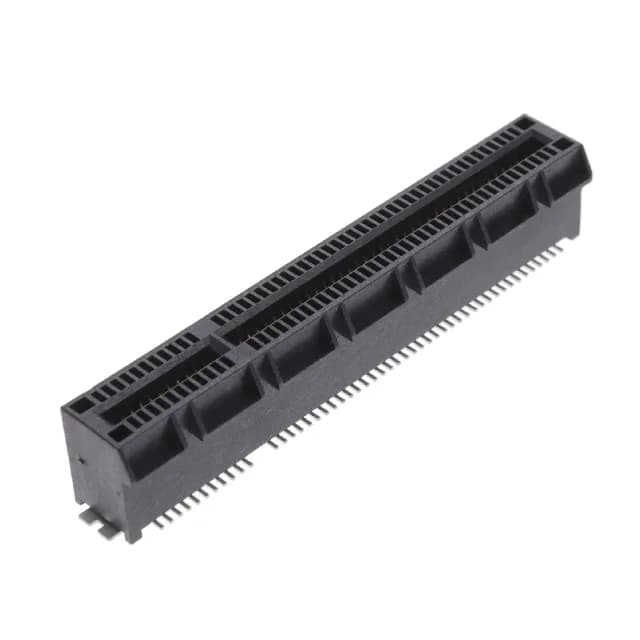

The 5-2337939-7: This is a 98-position, dual-readout female card-edge connector from the TE PCI Express series, designed to accept a PCI Express add-in card with 0.062" (1.57mm) nominal thickness.
LCP holds its dimensional stability through reflow and resists the flux and cleaning solvents used in board assembly.
Supplied in tray packaging, pick-and-place compatible with the solder retention and pick-and-place features noted on the housing.
