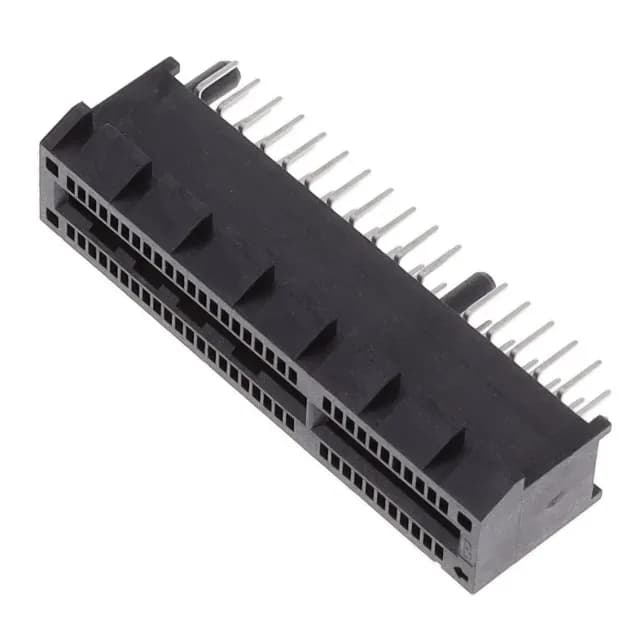

TE Connectivity PCI Express Gen4 edge-card connector, 5-2362375-2, 64 positions, 1.00mm pitch, dual-row, through-hole solder, gold 30µin contacts, locking ramp, black housing.
| Parameter | Value |
|---|---|
| Card type | PCI Express™ |
| Type | Cantilever |
| Mounting | Through Hole |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Thermoplastic |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Guide, Locking Ramp |
| Read out | Dual |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Termination rows | 2 |
| Positions | 64 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Bay, row) | 11; 21 |
The TE Connectivity 5-2362375-2 is a 64-position PCI Express Gen4 edge-card connector on a 1.00 mm pitch, dual-row, through-hole solder termination. It is designed for the PCIe x16 lane count, supporting Gen4 signal rates with the contact geometry and impedance control pre-validated for that standard.
Yes, the 5-2362375-2 is a PCI Express Gen4 edge-card connector, pre-validated for Gen4 signal rates with 64 positions supporting the full x16 lane count.
Yes, the housing includes a locking ramp and a board guide to secure the card and prevent unseating under vibration.
