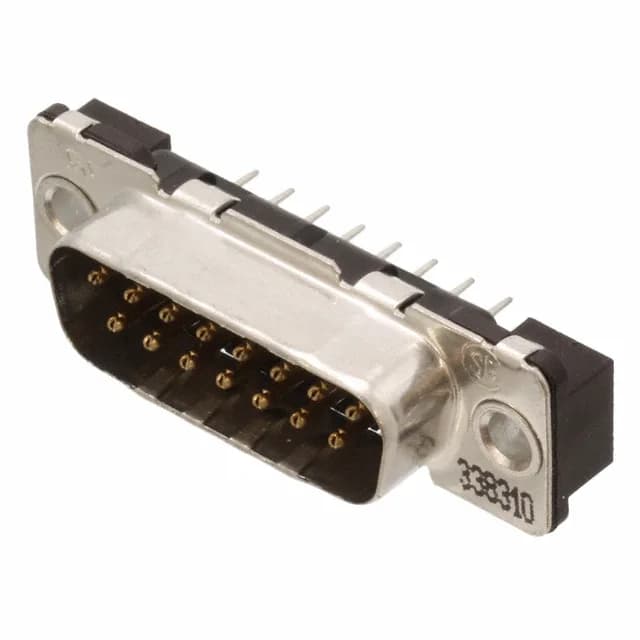

15-Position D-Sub Plug for Signal Interconnects
It carries 6 A per contact on gold-plated phosphor bronze pins, with the current rating typical for signal-level D-sub applications where the limiting factor is pin density at the board edge rather than the contact itself.
This plug mates with a 15-position D-Sub receptacle sharing the same shell layout (2, DA, A). The unthreaded housing flange accepts standard D-Sub hardware for panel retention, though the flange itself is unthreaded — the mating hardware is ordered separately.
