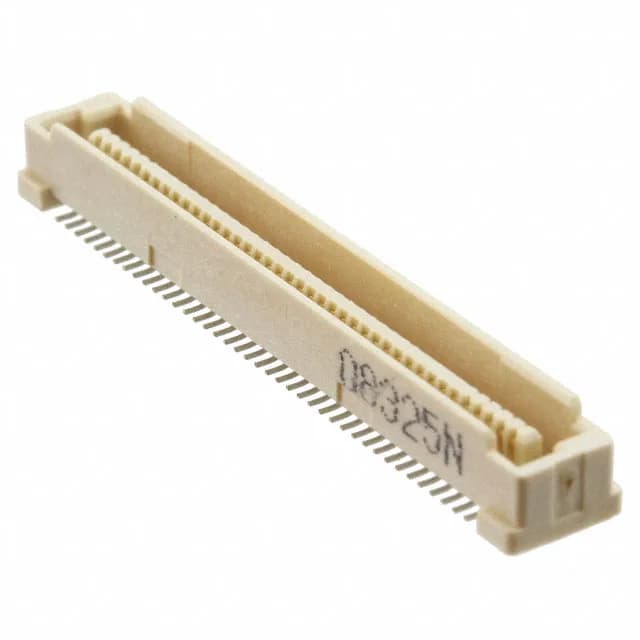

Board-to-Board Mezzanine Plug, 80 Circuits at 0.80mm Pitch
The surface-mount termination suits automated pick-and-place lines, and the integrated board guide aligns the connector during reflow to prevent tombstoning.
Which Stack Height Does Your Board Spacing Need?
This plug supports four mated stacking heights: 5mm, 9mm, 13mm, and 17mm. The actual stack is determined by pairing this plug with the matching Free Height receptacle — the same 0.80mm pitch, same 80-position count. For a 5mm stack, the receptacle height is roughly 0.15mm; for 9mm, the receptacle adds about 4.15mm. Confirm the receptacle part number against the stack-height table in the FH series product drawing before committing the layout.
No official cross-reference or direct second-source is on record; the 1-120532-2 is a different-pitch (1.00mm) 84-position plug from a separate series and is not a functional substitute.
