TE Connectivity AMP Connectors 5-5179009-5

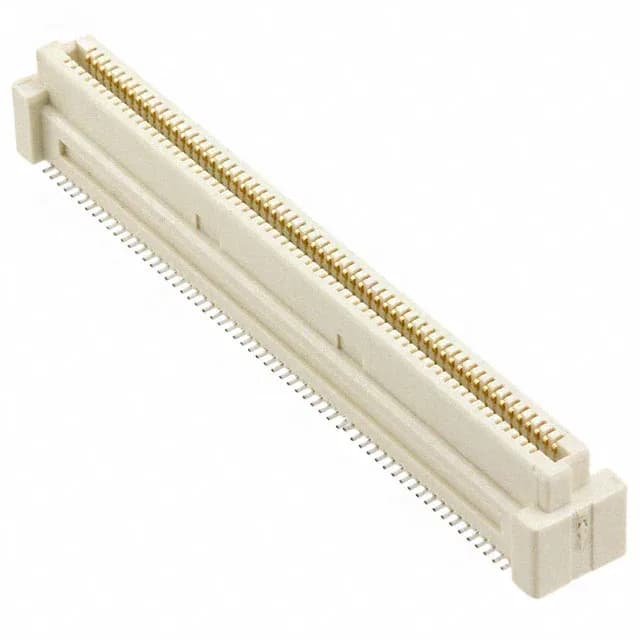

TE 5-5179009-5 Free Height (FH) Receptacle, 120 Pos, 0.80mm

MPN 5-5179009-5
Active

TE Connectivity Free Height (FH) receptacle, 120 positions, 0.80mm pitch, 2 rows, SMT, gold 8.00µin contacts, 7.75mm above board, mated stacking heights 9-12mm.

$9.2300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFree Height (FH)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-5179009-5 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.305\" (7.75mm)
Mated stacking heights9mm, 10mm, 11mm, 12mm
Pitch0.031\" (0.80mm)
PackageTube
FeaturesBoard Guide
Contact finishGold
Rows2
Positions120
Contact finish thickness8.00µin (0.203µm)

Product details

Mezzanine Receptacle for 9-12 mm Board Spacing

The 7.75 mm height above board, combined with the supported mated stacking heights of 9 mm, 10 mm, 11 mm, and 12 mm, gives the board layout engineer a defined z-height budget for the interconnect. The gold-plated contacts (8.00 µin) and surface-mount termination suit automated assembly in controlled environments like telecom or networking line cards.

The 120 positions fill a board edge length of about 48 mm.

The 1-120532-2 is a different connector family (1.00 mm pitch, plug, 84 positions) and will not drop into the same footprint.
