TE Connectivity AMP Connectors 5-5179180-2

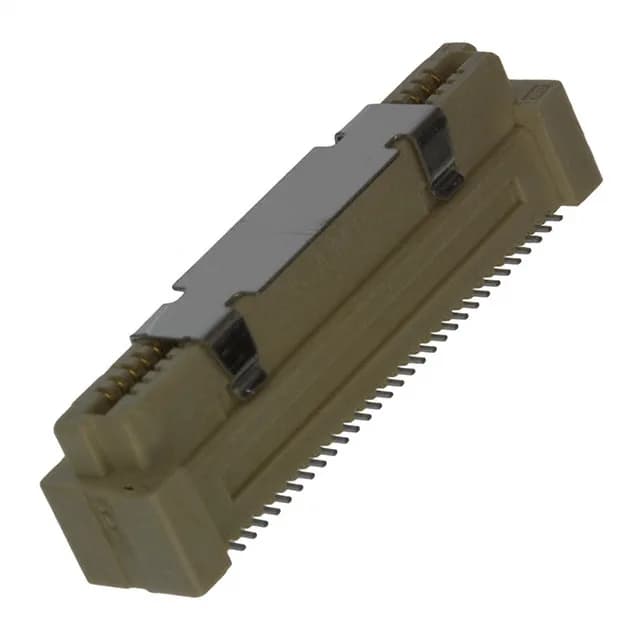

TE 5-5179180-2 Free Height Receptacle, 60 Pos, 0.80mm Pitch

MPN 5-5179180-2
Active

TE Connectivity Free Height (FH) series, receptacle with outer shroud contacts, 60 positions, 2 rows, 0.031" (0.80mm) pitch, surface mount, gold contact finish 8.00µin, supports mated stacking heights 9mm, 10mm, 11mm, 12mm.

$4.4000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFree Height (FH)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-5179180-2 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.305\" (7.75mm)
Mated stacking heights9mm, 10mm, 11mm, 12mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Contact finishGold
Rows2
Positions60
Contact finish thickness8.00µin (0.203µm)

Product details

0.80 mm Pitch Mezzanine Receptacle for 9–12 mm Board Spacing

At a 0.031" (0.80 mm) pitch, it routes dense signal interconnects between two PCBs without the footprint penalty of a 1.00 mm or wider pitch. The connector uses outer shroud contacts — the receptacle wraps around the mating plug's center strip, which gives the pair inherent polarization and protects the contacts during blind mating.

Mated Stack Height Range: 9 mm to 12 mm

That range covers common card spacing in compact industrial controllers, networking line cards, and test equipment mezzanine assemblies. The actual stack height is determined by the mating plug — the 5-5179180-2 receptacle itself is a fixed-height component. When specifying the board-to-board gap, select the plug variant whose mated height matches the required card pitch. For a 9 mm stack, the mating plug must be the corresponding Free Height plug rated for that height.
